2.5kW Fuel Cell T-Series

University

This fuel cell stack is designed to serve two functions. It can be used in a stand-alone configuration to power a remote outpost or operation, but multiple T-2,500s can also be linked together to achieve a combined 5,000 watts or higher. This flexibility enables this fuel cell stack to be deployed in a wider range of configurations. While this flexibility is extremely useful, this fuel cell stack still has the same benefits of being designed to operate in rural locations and areas. The modular configuration of this fuel cell enables zero emission operations in more places while still being eco-friendly.

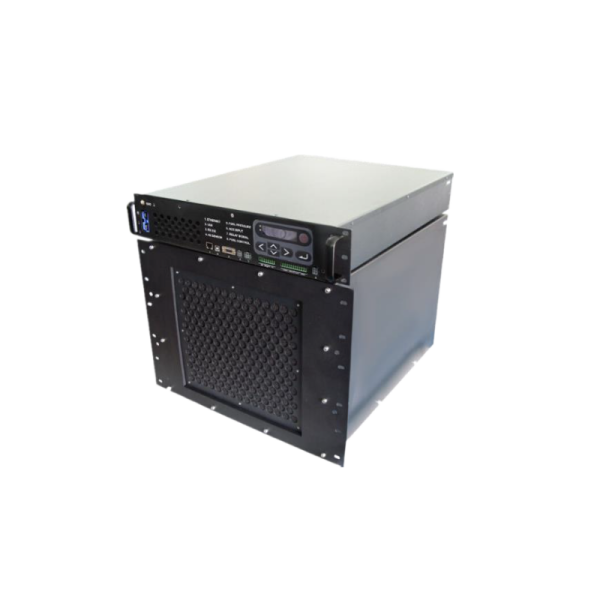

2.5kW FC T-Series

2 500W Fuel Cell Stack T-Series

Additional Information

T Series fuel cell systems often come with a controller, FC connector, RS232 cable, FC +/- cables, output +/- cables, pressure regulator, 6mm PTFE tube, Ferrule Connectors, and a hydrogen sensor.

Please submit a quote request form in order for us to be able to help you integrate this fuel cell stack into your operations. With its modular design we can often provide additional information to help speed the integration of this product into a project, and we can also recommend other components in order to provide a complete solution for this fuel cell stack product.





List of T-2500 components:

1 x 2500W fuel cell stack

1 x 2500W controller

1 x fuel cell connector

1 x RS232 cable

1 x FC +/- cables

1 x Output +/- cables

1 x pressure regulator

2 x 8mm PTFE tube (1m)

20 x ferrule connectors

1 x hydrogen sensor

2 500W Fuel Cell Stack T-Series Quick Product Facts

Pressure H icon

Hydrogen Pressure

Hydrogen must be fed into t;he fuel cell stack at a pressure of 0.55 to 0.75bar.

Temperature icon

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 0 to 40° C.

weight icon

FC Stack Weight

The stack (including fan and casing) weighs 89lbs / 40.3kg.

efficiency icon

System Efficiency

At peak power the efficiency of the system is 42%.

drop icon

Hydrogen Purity

A fuel of gaseous hydrogen at a minimum purity level of 99.995% is required.

voltage output

Voltage Output

The voltage can be adjusted to between 43.2 and 57.6 volts direct current.

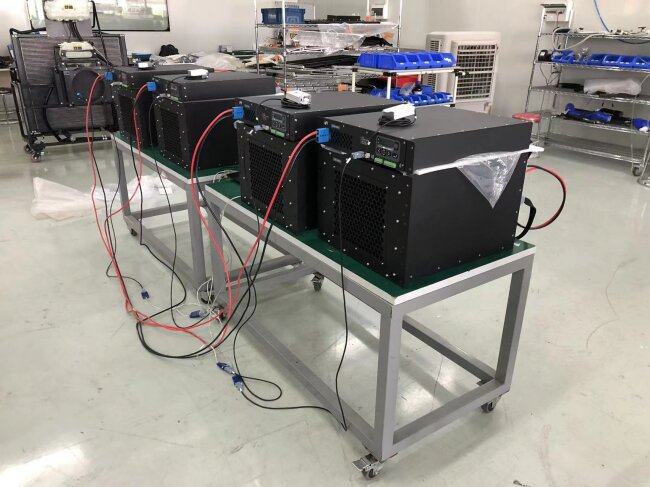

T10000 photos1
T10000 photos2
T10000 photos3
