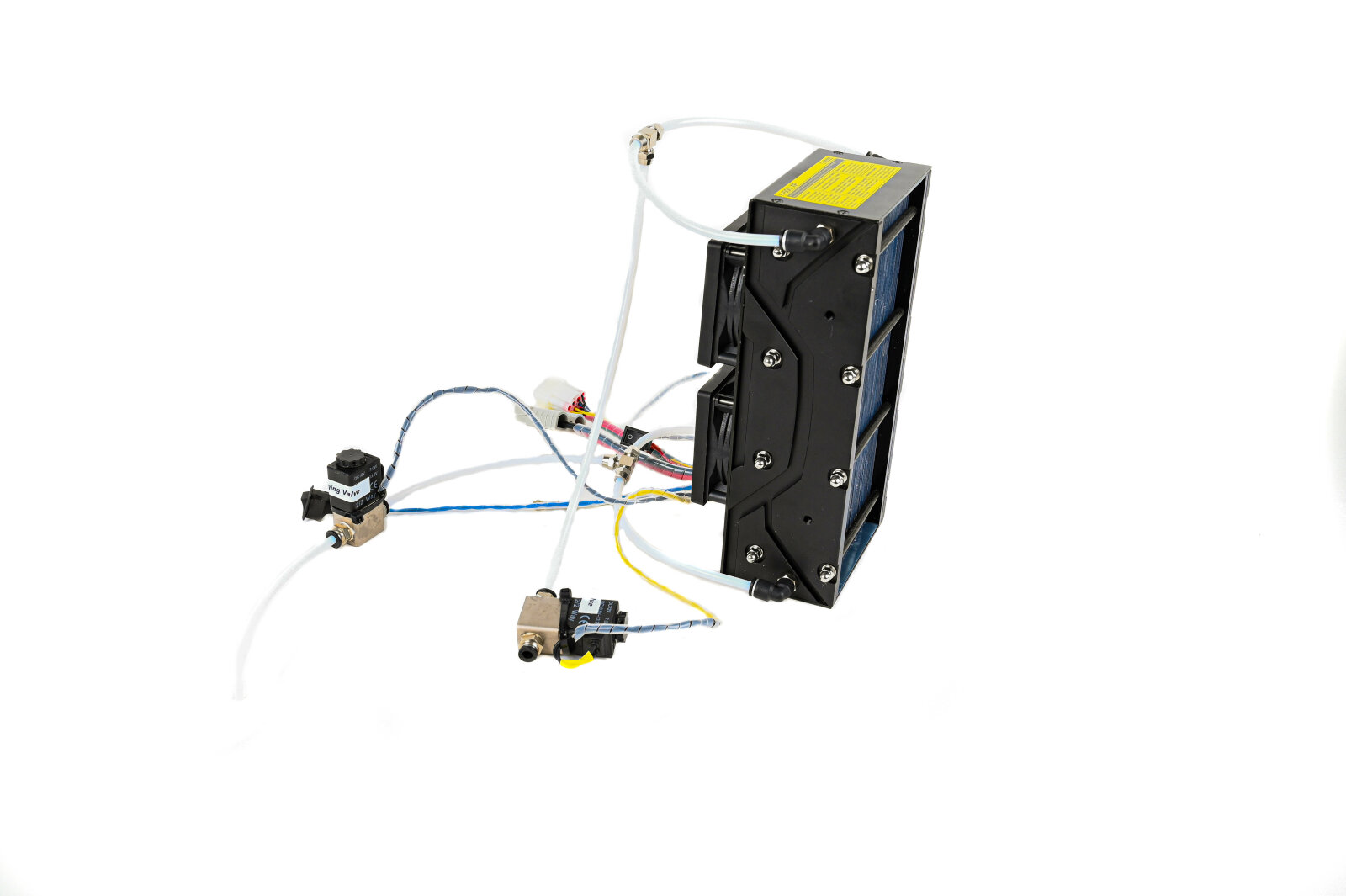

The H-500 XP PEM Fuel Cell Stack is engineered for competitive energy efficiency, hands-on engineering, and lightweight vehicle integration. Delivering 500W of reliable hydrogen power, it's a go-to choice for student design teams, mobility challenges, and real-world classroom innovation. Whether you're building a prototype for a competition or powering a small electric system, the H-500 XP offers plug-and-play ease with professional-grade performance.

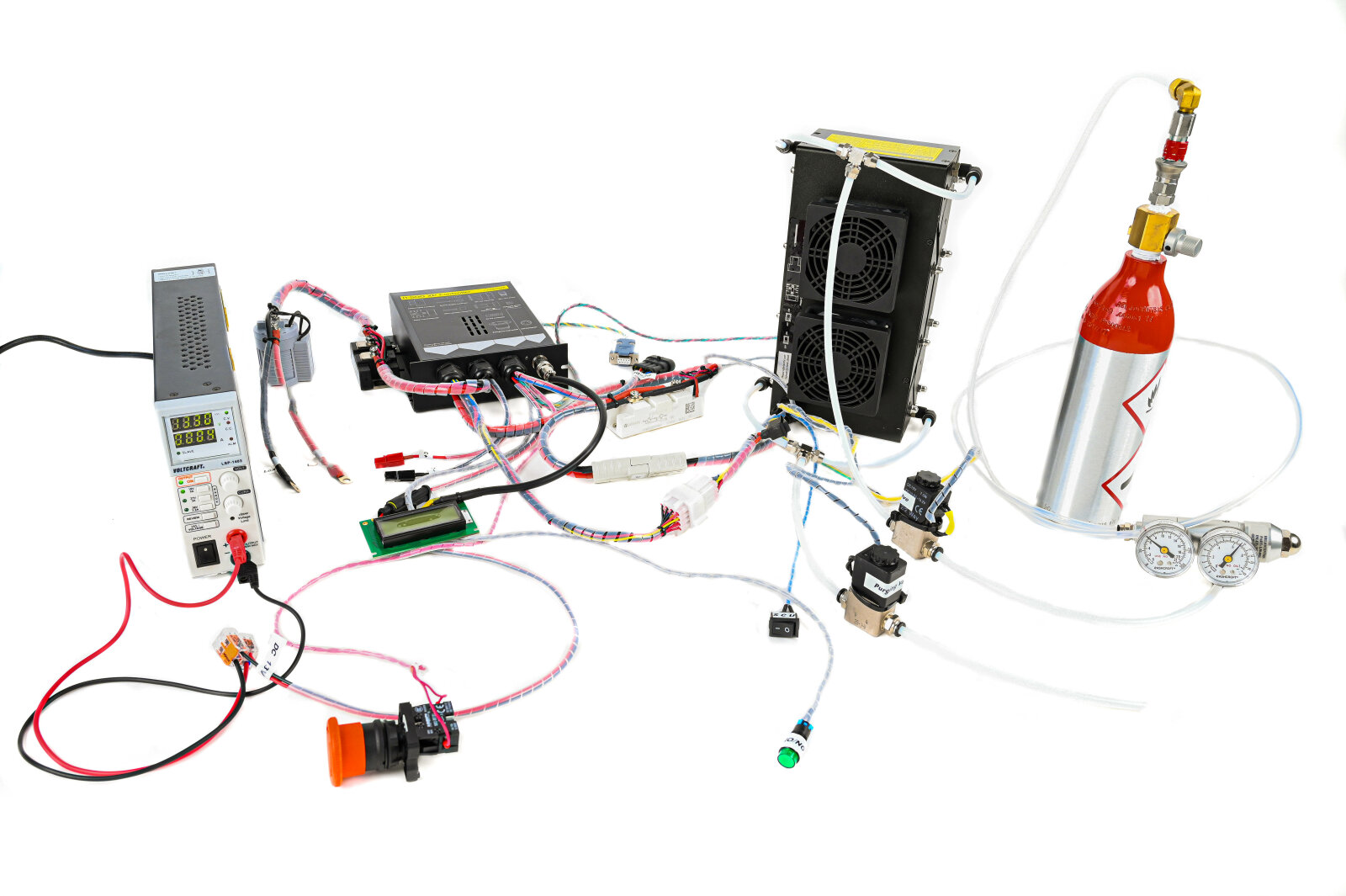

Each stack includes essential components - blower, electronic valves, control box, tubing, and ON/OFF switches — and is fully compatible with Horizon's monitoring software and PC-connected controller for detailed system analysis. Optional DC/DC converters are available for customized voltage output.

Why Choose the H-500 XP Fuel Cell Stack (500W)

  • Built for Lightweight Vehicles - Ideal for competitions like the Shell Eco-marathon, school projects, and efficient mobility platforms
  • Ready-to-Use Setup - Includes blower, control box, valves, tubing, and switches for fast integration
  • Real-Time Monitoring Support - PC-compatible software and controller available for performance analysis
  • Flexible Power Output - Optional DC/DC converter allows voltage adjustment for specific system needs
  • Rapid Delivery & Global Support - Off-the-shelf availability and first-class customer support

Want to see this product in real-world action? Check out the incredible success stories of our customers.

FCS-B500XP H-500 XP Fuel Cell Stack

FCS-B500XP

In stock
Request for quote

Fuel Cell Stack 500W XP

Hear from Our Customers:

"It shows them what technology is out there, and how it can be used. It also teaches them how to work in teams on large-scale engineering projects with real-world applications." - Charles Sprague, Engineering Teacher at Jefferson County Public Schools in Colorado, USA.





Fuel Cell and Hydrogen

Safety Requirements

Do not attach or detach power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is dismantled or otherwise modified. Hydrogen is a colorless, odorless, and flammable substance.  Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any hydrogen that has escaped within the system or from the hydrogen storage canister.  Please refer to the H-500 XP User Manual to see the full list of the safety requirements for the product.



Fuel Cell Stack 500W XP Quick Product Facts

Number of cells icon

Number of Cells

This fuel cell stack is composed of 30 fuel cells.

Pressure icon

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.

Temperature icon

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 32 to 95° F / 0-35° C.

Humidity icon

Humidification

This fuel cell stack uses self-humidification.

weight icon

FC Stack Weight

The stack (including fan and casing) weighs 8.6lbs / 3.9kg.

efficiency icon

System Efficiency

At 18 volts the efficiency of the system is 40%.

XP-Series Fuel Cell Stacks



Horizon's XP-series systems are the most fuel efficient available on the market - ideal for use in efficiency competititons such as Shell Ecomarathon.

  • Connections/Tubing
  • Electronic valves
  • Electronic control box H-500 stack with blower
  • Stack holder
  • LCD Display
  • SCU ON/OFF
  • Start up battery connector
  • Ambient temperature sensor
  • Blower controller

Optional components



  • Monitoring software
  • Hydrogen sensor
  • DC/DC convertor
  • Ultracapacitor bank

Downloads

Datasheet

pdf [4.37 MB]

User Manual

pdf [3.7 MB]
pdf [2.36 MB]
