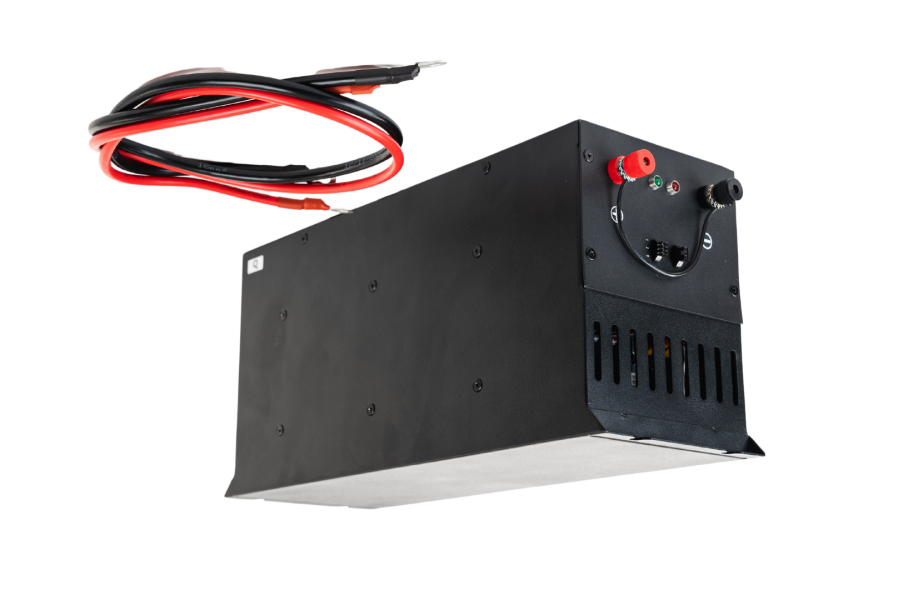

Ultracapacitor bank (125V 7F)

Ultracapacitor 125V
Item Specification/Condition
Part number MK-124V-P7FLJB (350F-48C1B-LJB)
Rate discharge capacitance 7F
Capacitance tolerance -10% to +30%
Working voltage 0V to 124V
Rated voltage 124V
Absolute maximum voltage 129V
Working current 0A to 35A
Rated current 35A
Maximum peak currrent, 1 second (non repetitive) 170A
Operating temperature range -40°C to +70°C
Equivalent series resistance 65mΩ at 1000Hz
Balancing voltage type Equipped with equalizing circuit
Shell packing Metal shell
Output type Wire
Weight 7.8kg
Dimensions 396x140x188mm


Cable included
