H-100 PEM Fuel Cell - 100W
When looking to procure fuel cell stacks for new product development, testing or system integration, you are likely to find the best possible value at Horizon Fuel Cell Technologies. We offer the widest range of standard "off-the-shelf" PEM fuel cell systems today from 100W to 5kW (deliverable within 1 to 4 weeks), as well as customized fuel cell system configurations up to 30kW. Our standard systems are simple, efficient, and feature some of the highest power densities available in the world opening new possibilities for integration and commercialization.
Our standard systems are modular, simple, efficient, and feature some of the highest power densities available in the world opening new possibilities for integration & commercialization. Make contact with our team to explore accessories, new D/DC power conversion devices, and other system components you may need.
- Electronic valves
- Electronic control box
- 100W stack with blower
- Fuel Cell ON/OFF switch
- SCU ON/OFF switch
Make contact with our team to explore accessories, new D/DC power conversion devices, H2 Sensor, Ultracapacitor and other system components you may need.

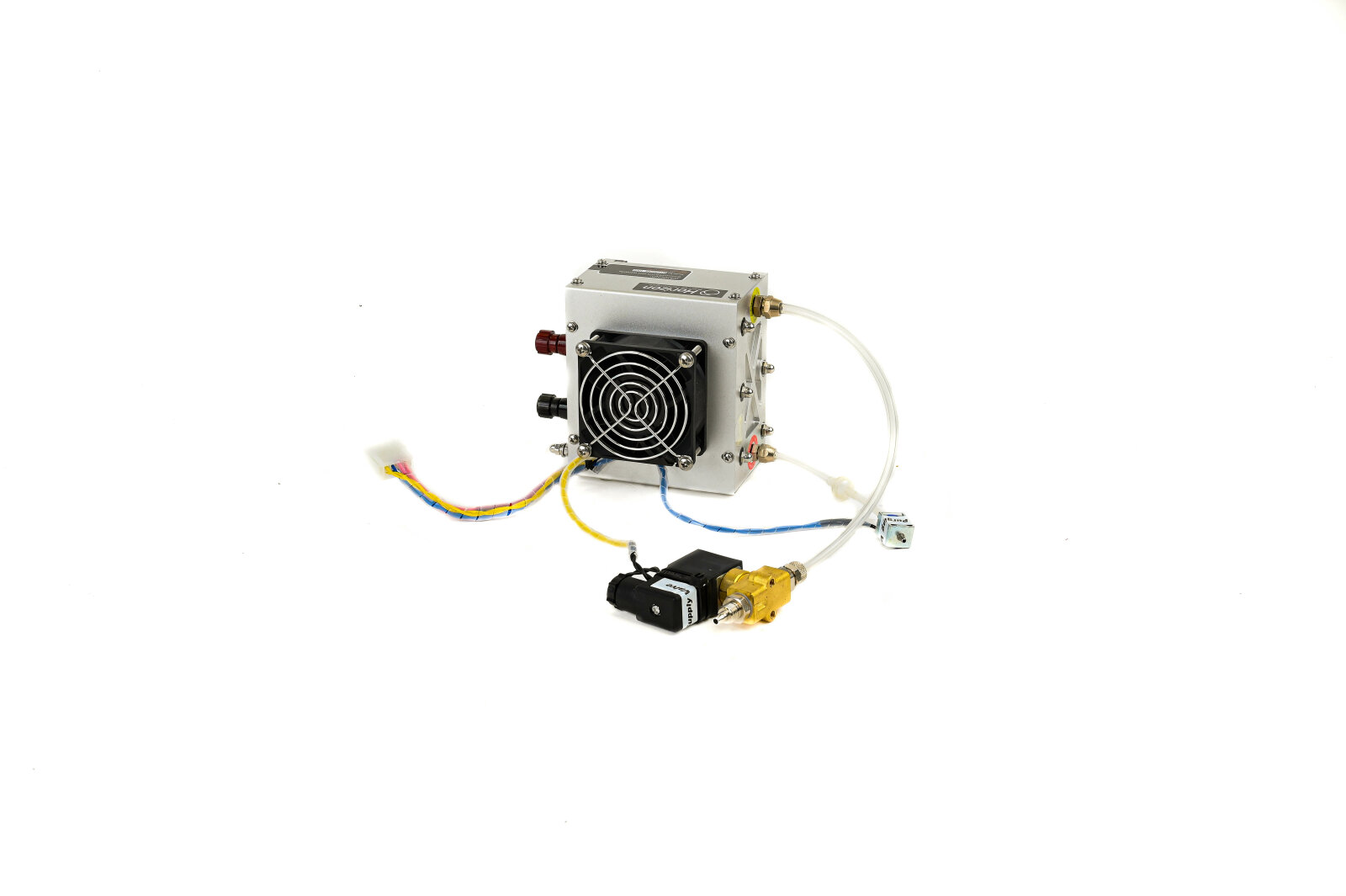

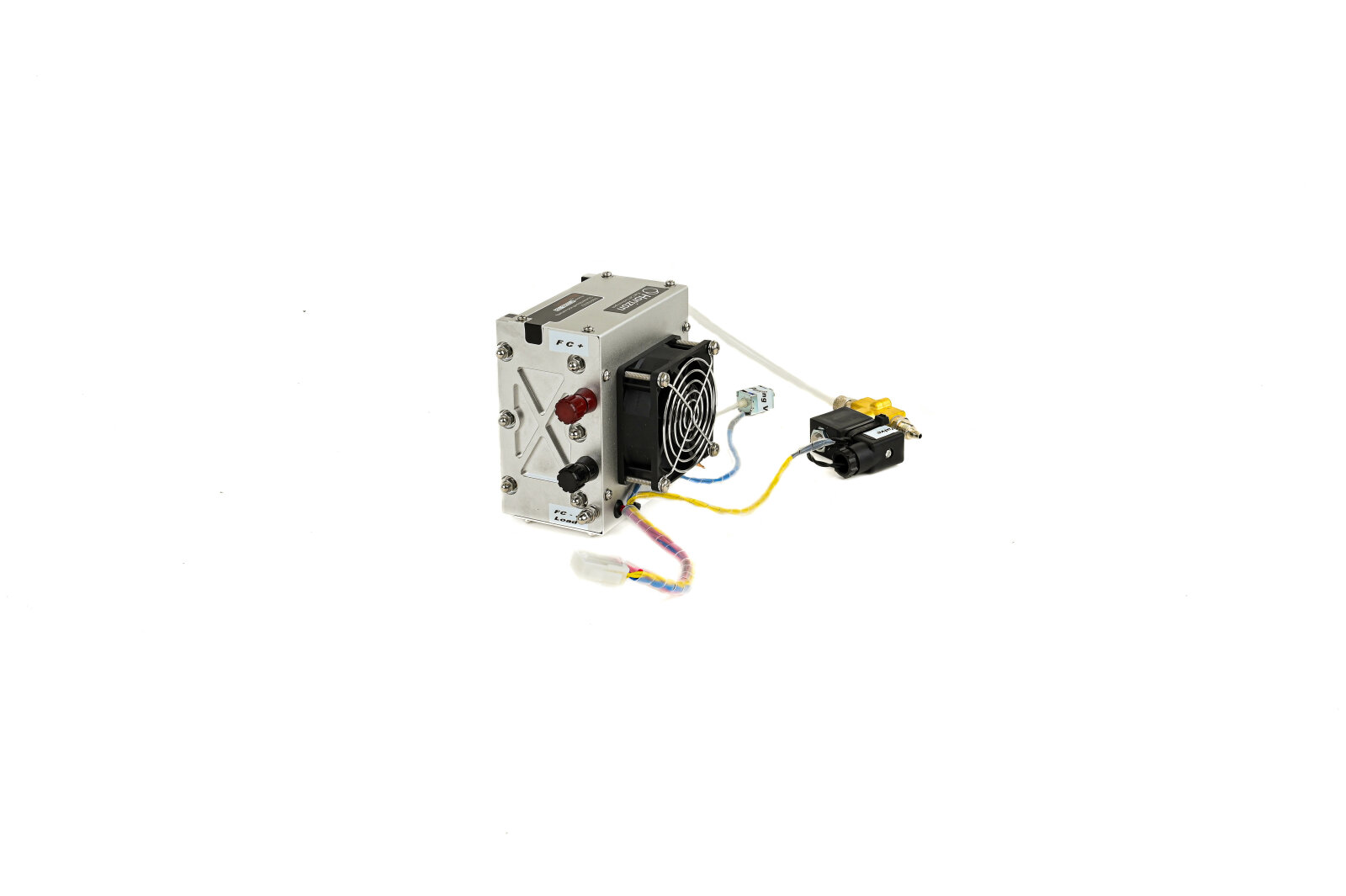

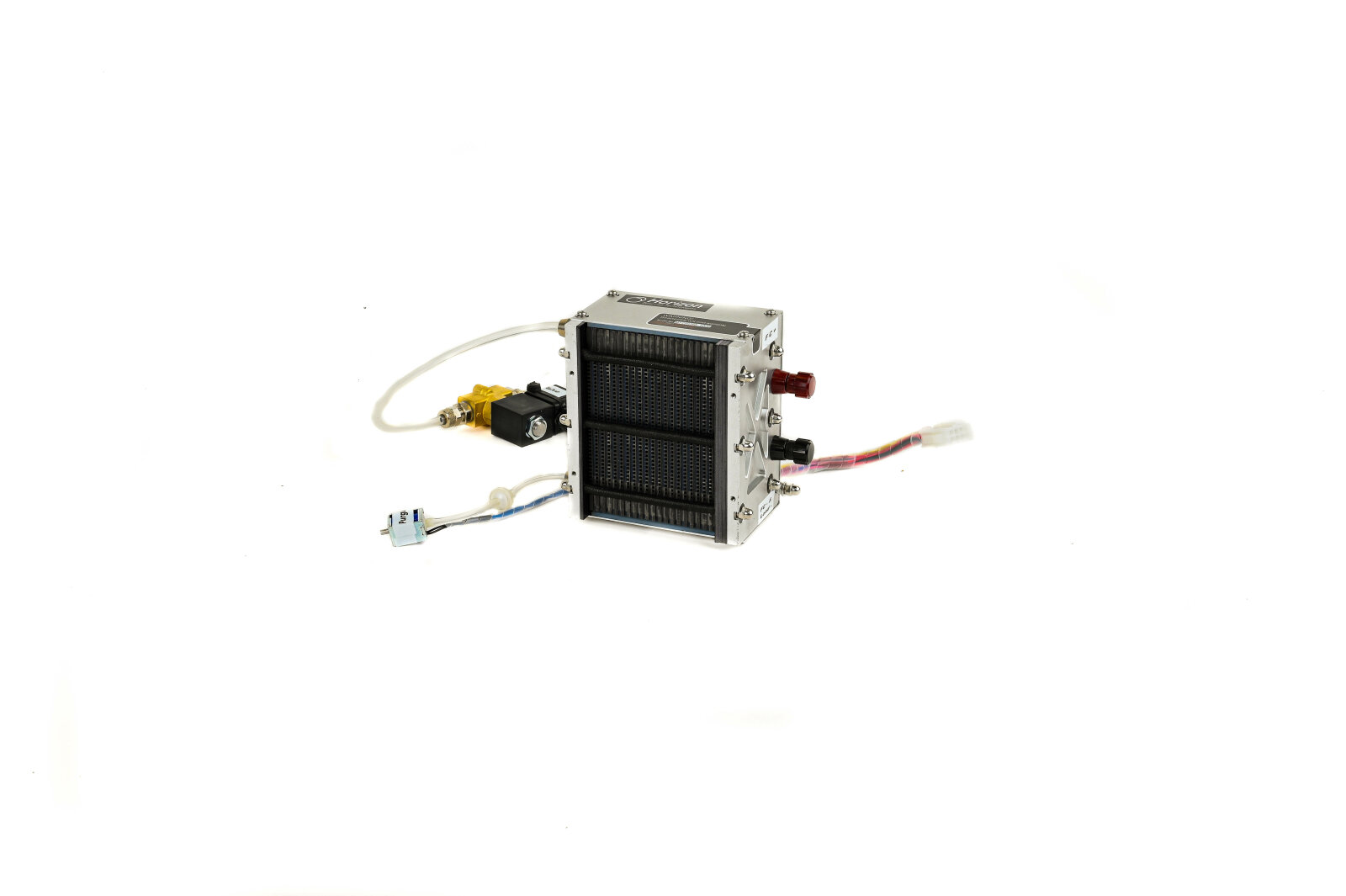

Fuel Cell Stack 100W
It is possible to purchase the H-100 without any supporting components. However, Horizon Educational recommends contacting us to build an easy-to-use bundle in order to facilitate integration of this fuel cell stack into your project. Click here to fill out a quote request form if you would like to create a complete package of fuel cell stack accessories that includes.
Did you know that both Hyundai and Toyota are selling full-sized FCEVs that a person can take home today? We are totally serious! Please check out our blog to learn more about hydrogen fuel cell electric vehicles, which are the most environmentally friendly vehicles commercially available on Earth. You can also use our blog to stay caught up on our FCEV racing series which is part of our H2GP program.
Fuel Cell Stack 100W Quick Product Facts
Number of Cells
This fuel cell stack is composed of 20 fuel cells.
Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.
The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.
This fuel cell stack uses self-humidification.
FC Stack Weight
The stack (including fan and casing) weighs 3.14lbs / 1.5kg.
The weight of the controller is .88lbs / 400g.
At 72 volts the efficiency of the system is 40%.
External Power Supply
Proper operation of the stack requires an external power supply of 13 volts at 5 amperes.
Hydrogen consumption at rated power: 1.3l/min.
Stack dimensions: 11.8 x 10.4 x 9.4cm
Controller dimensions: 13,4 x 7,5 x 3,9cm

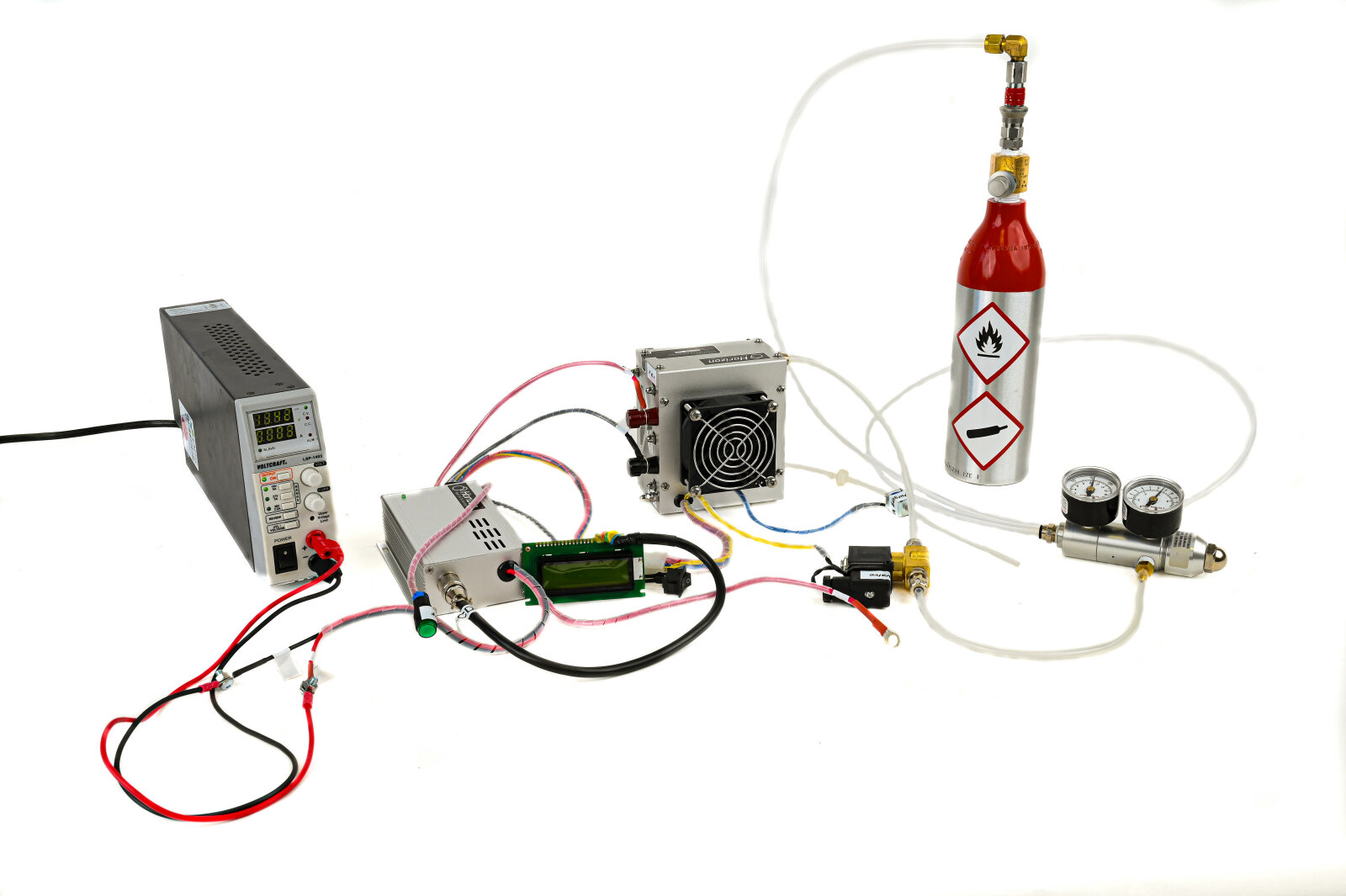

List of H-100 components:
1 x 100W fuel cell stack (includes supply valve, purge valve, blower)

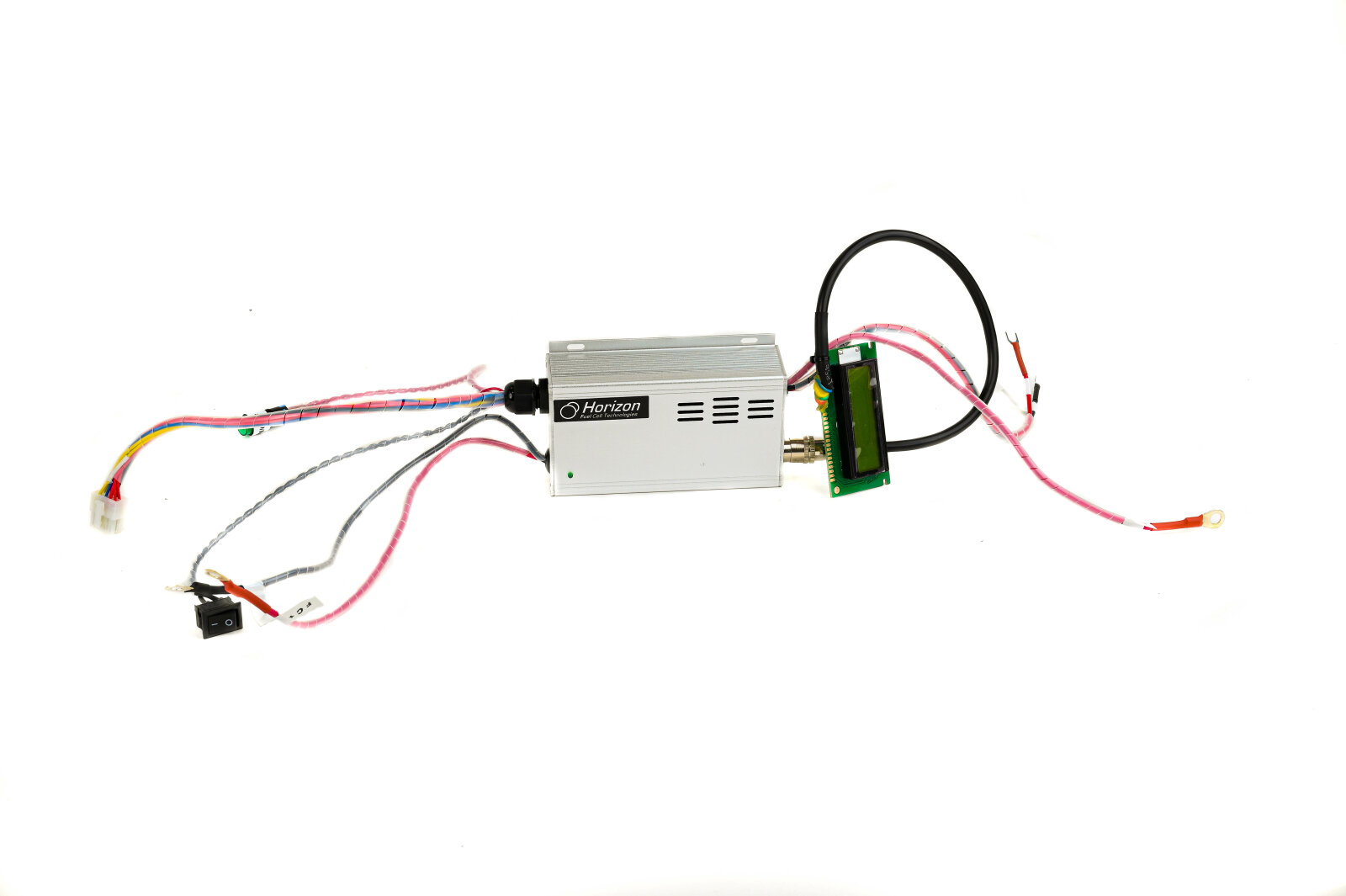

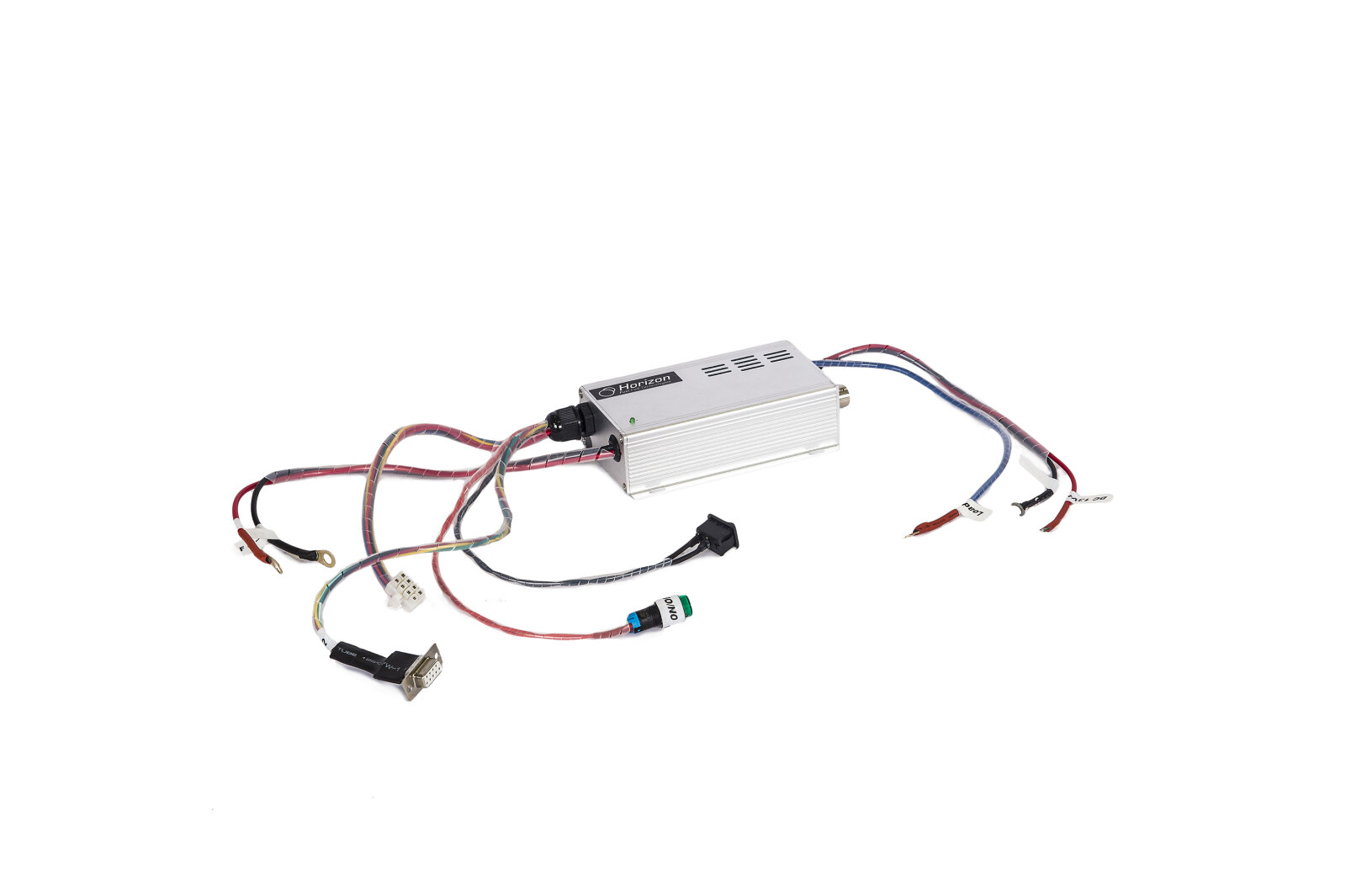

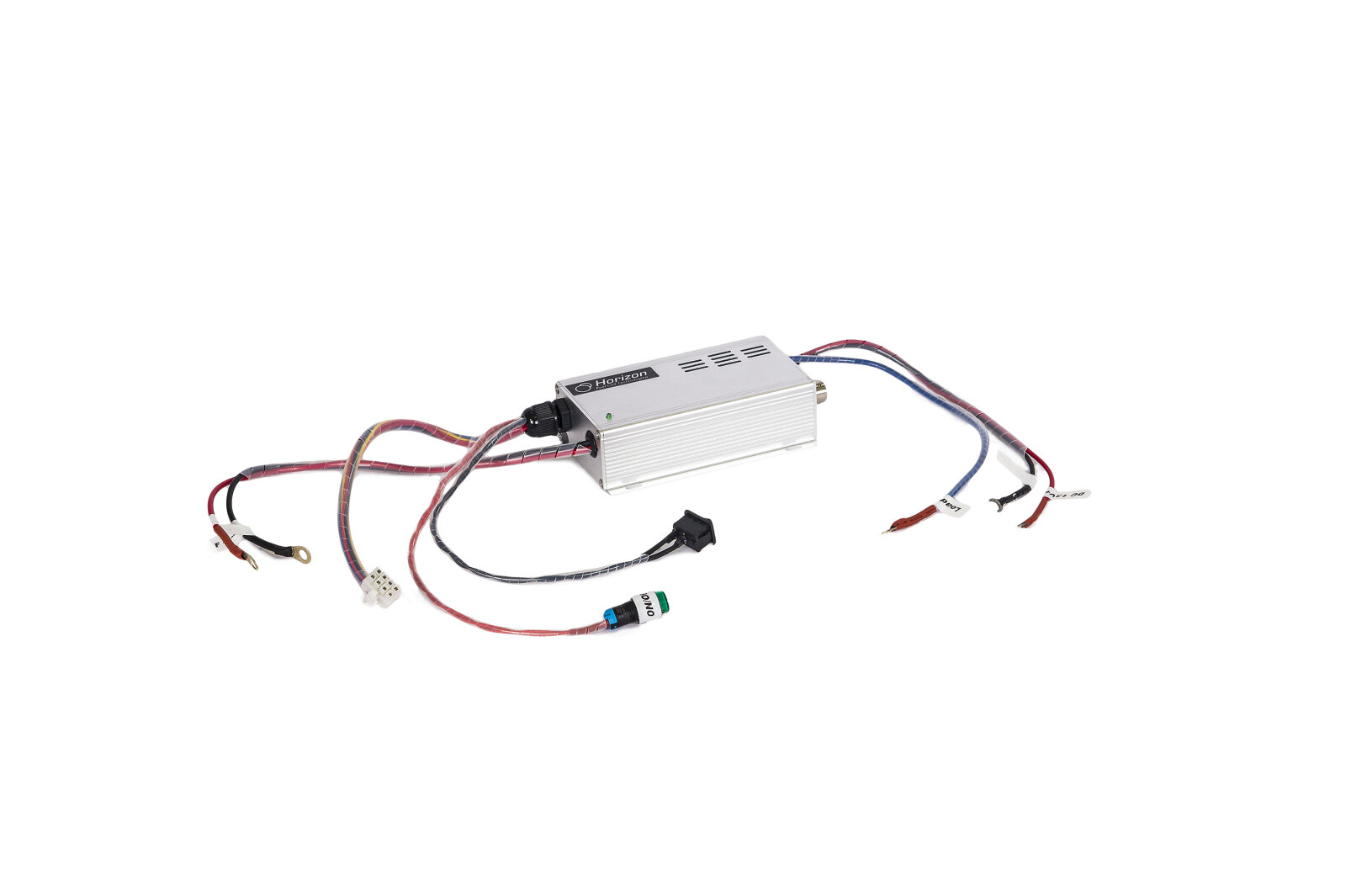

1 x controller (includes short circuit unit)
1 x silicon tube (OD 4 x ID 2mm), 50cm long
1 x silicon tube (OD 6 x ID 3mm), 50cm long
1 x filter
3 x screw M6
3 x nut M6
6 x washer
2 x outlet gas fitting (M5-4)
2 x inlet gas fitting (M5-6)
1 x LCD Display
