H-200 PEM Fuel Cell - 200W

University

When looking to procure fuel cell stacks for new product development, testing or system integration, you are likely to find the best possible value at Horizon Fuel Cell Technologies. We offer the widest range of standard "off-the-shelf" PEM fuel cell systems today from 100W to 5kW (deliverable within 1 to 4 weeks), as well as customized fuel cell system configurations up to 30kW. Our standard systems are simple, efficient, and feature some of the highest power densities available in the world opening new possibilities for integration and commercialization.

Our standard systems are modular, simple, efficient, and feature some of the highest power densities available in the world opening new possibilities for integration & commercialization. Make contact with our team to explore accessories, new D/DC power conversion devices, and other system components you may need.

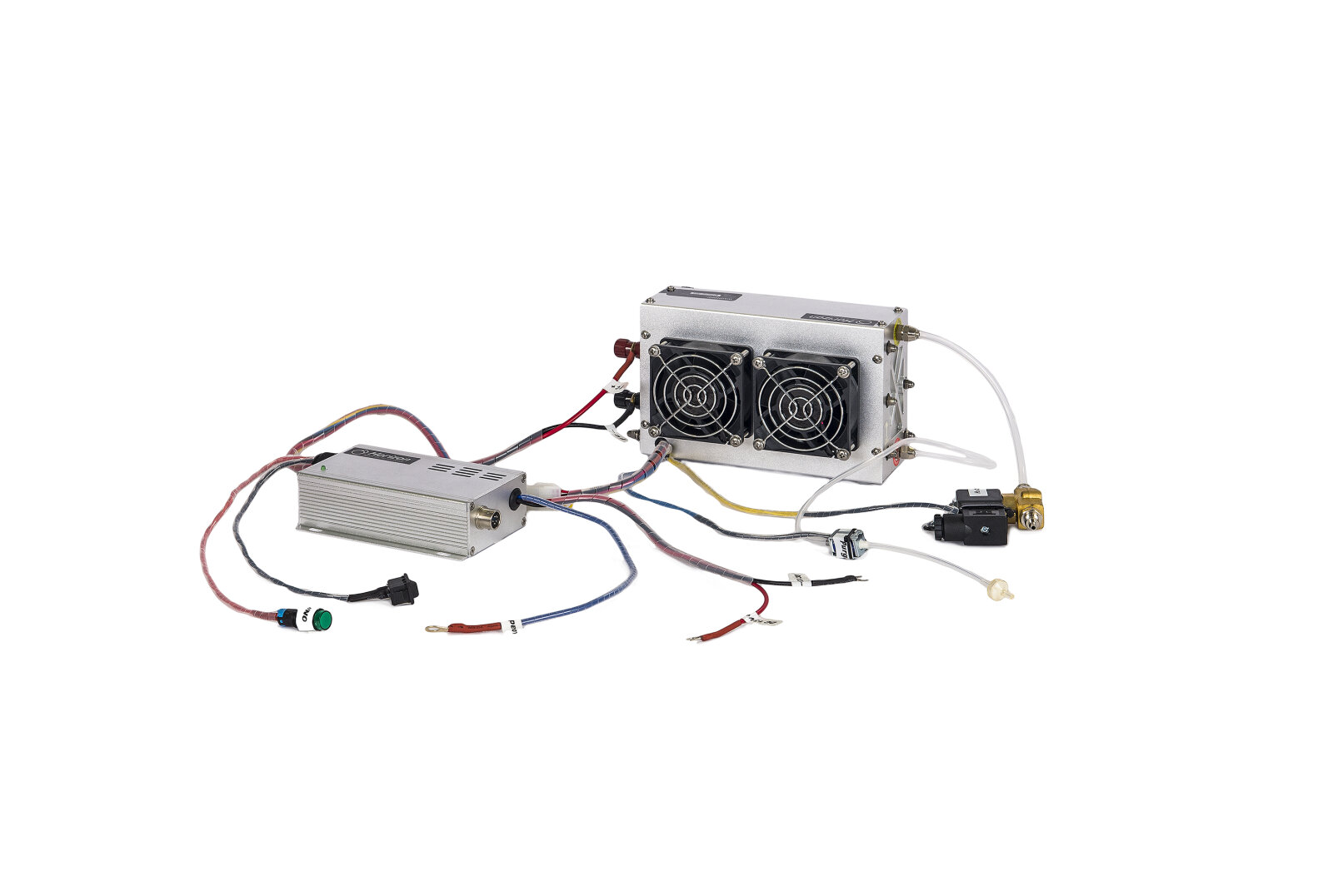

  • Connections/Tubing
  • Electronic valves

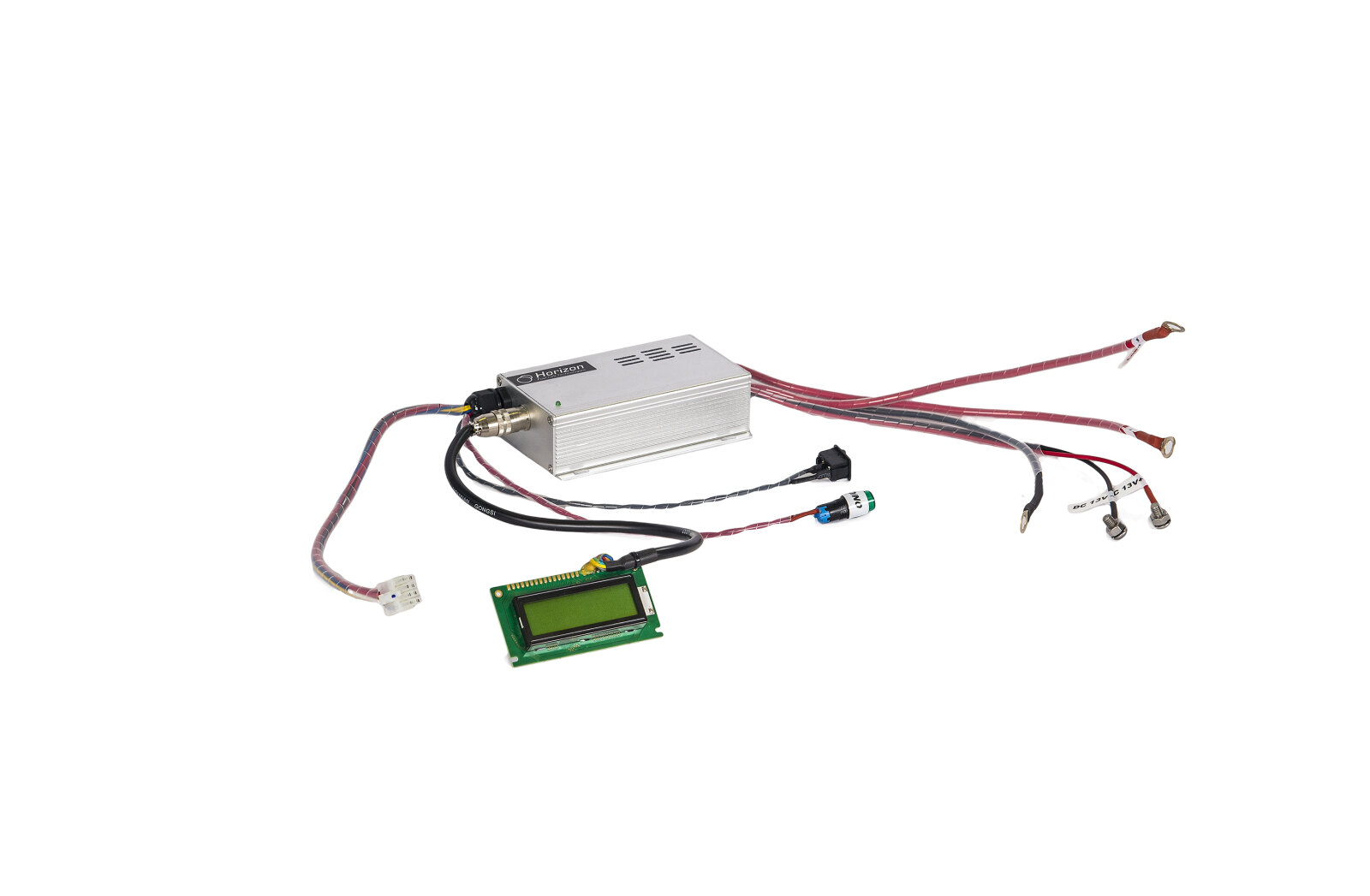

  • Electronic control box

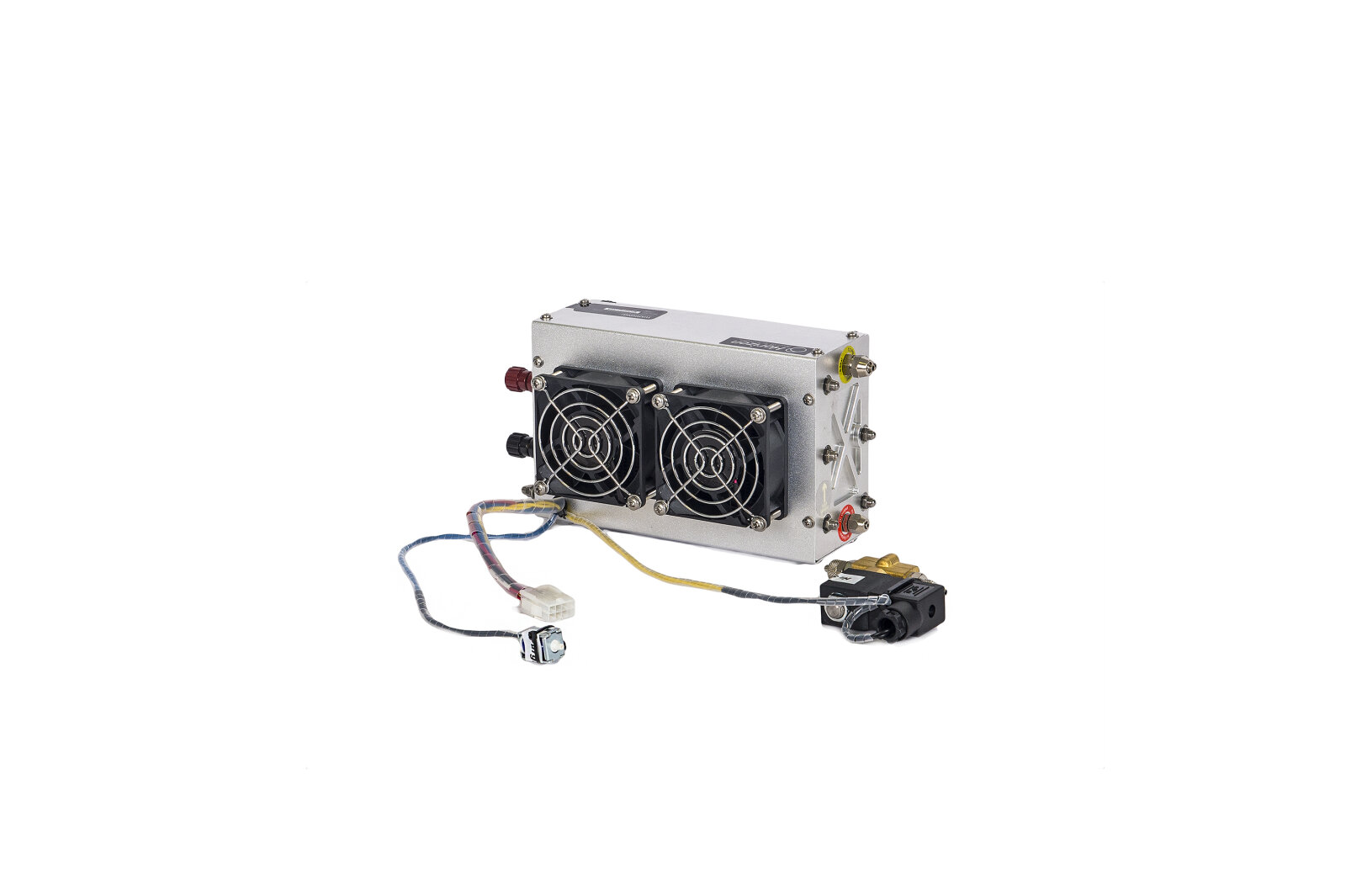

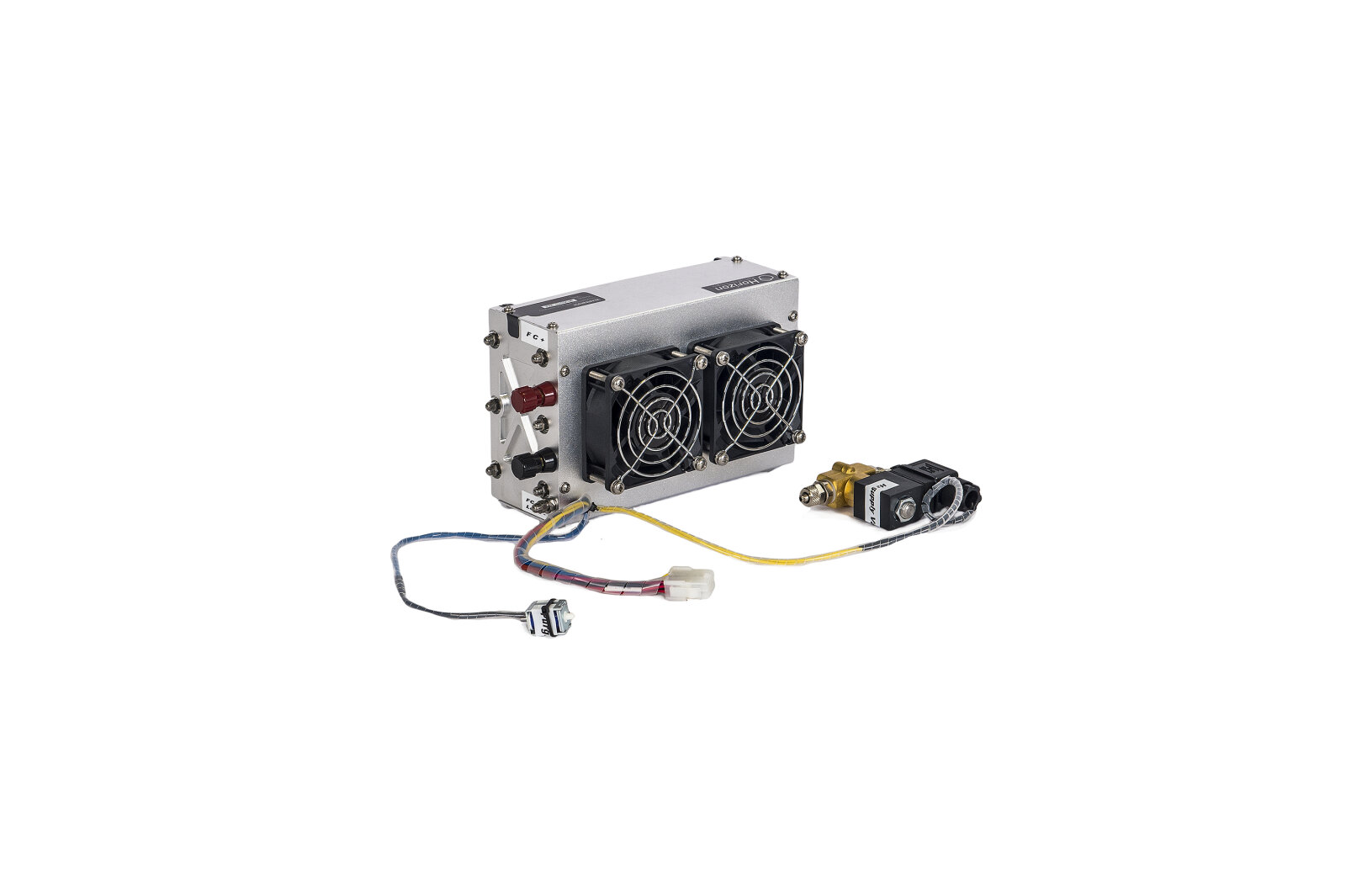

  • 200 W stack with blower
  • Fuel Cell ON/OFF switch
  • SCU ON/OFF switch

Make contact with our team to explore accessories, new D/DC power conversion devices, H2 Sensor, Ultracapacitor and other system components you may need.

FCS-C200 H-200 PEM Fuel Cell 200W

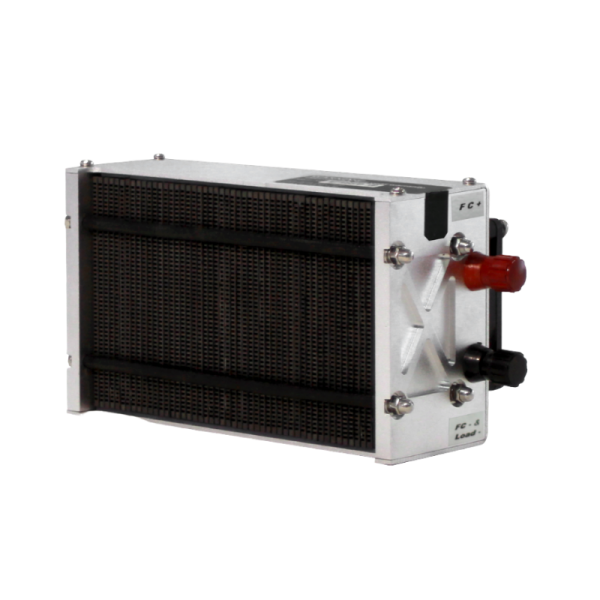

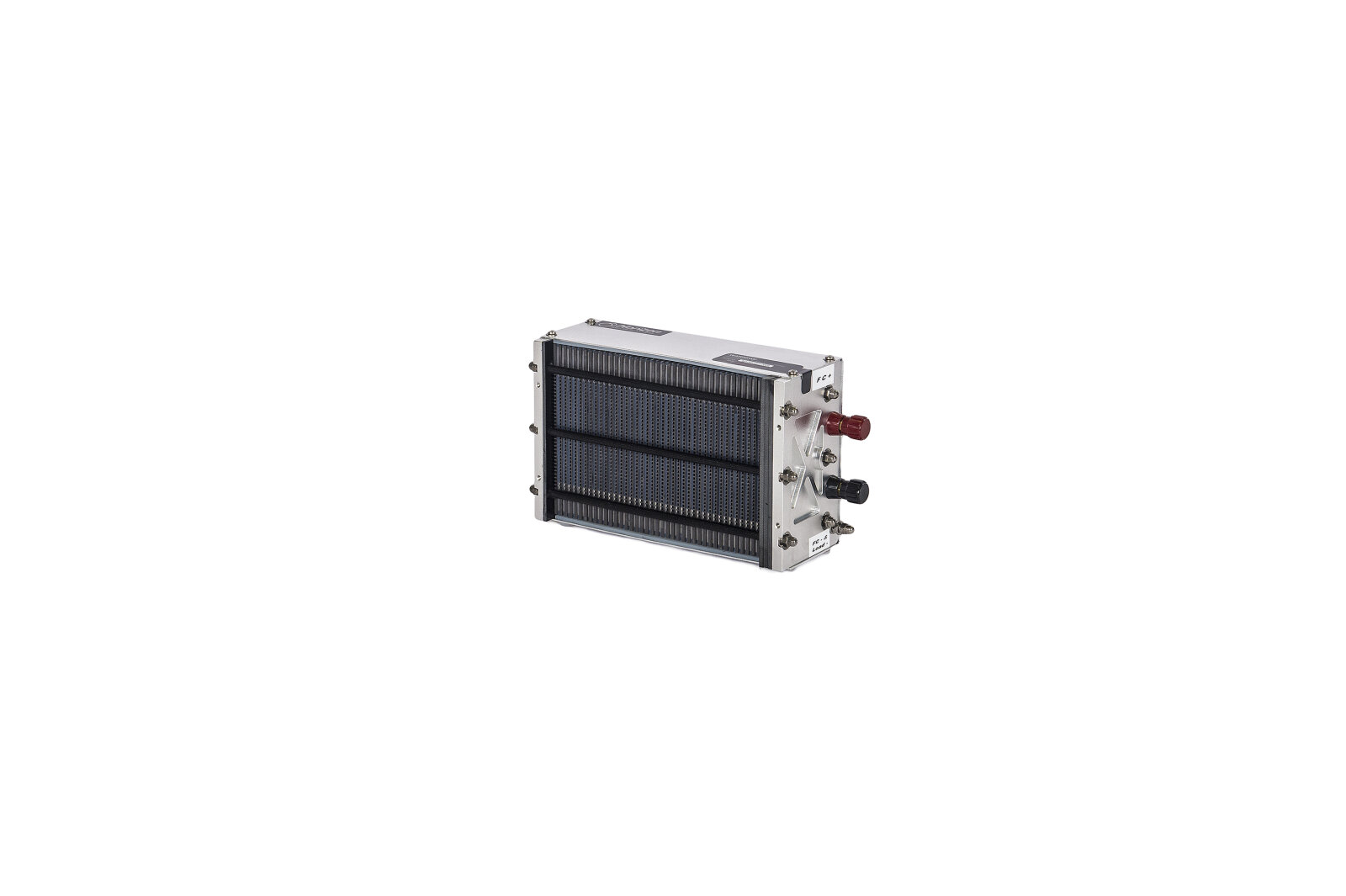

Fuel Cell Stack 200W

Additional Information

Horizon Educational highly recommends filling out a quote request form. By doing this we can reach out to you and help you determine what fuel cell stack accessories you made need for faster integration of this fuel cell stack into your project.  Please click here to fill out the form.  However, if you feel more comfortable, then you may purchase just the standalone fuel cell stack.

200W Fuel Cell and Hydrogen

Safety Requirements

Do not connect or disconnect power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is disassembled or otherwise altered. Hydrogen is a colorless, odorless, and flammable substance.  Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any leaking hydrogen within the system or from the hydrogen storage canister. Please refer to the H-200 User Manual to see a complete list of the safety requirements for the product.

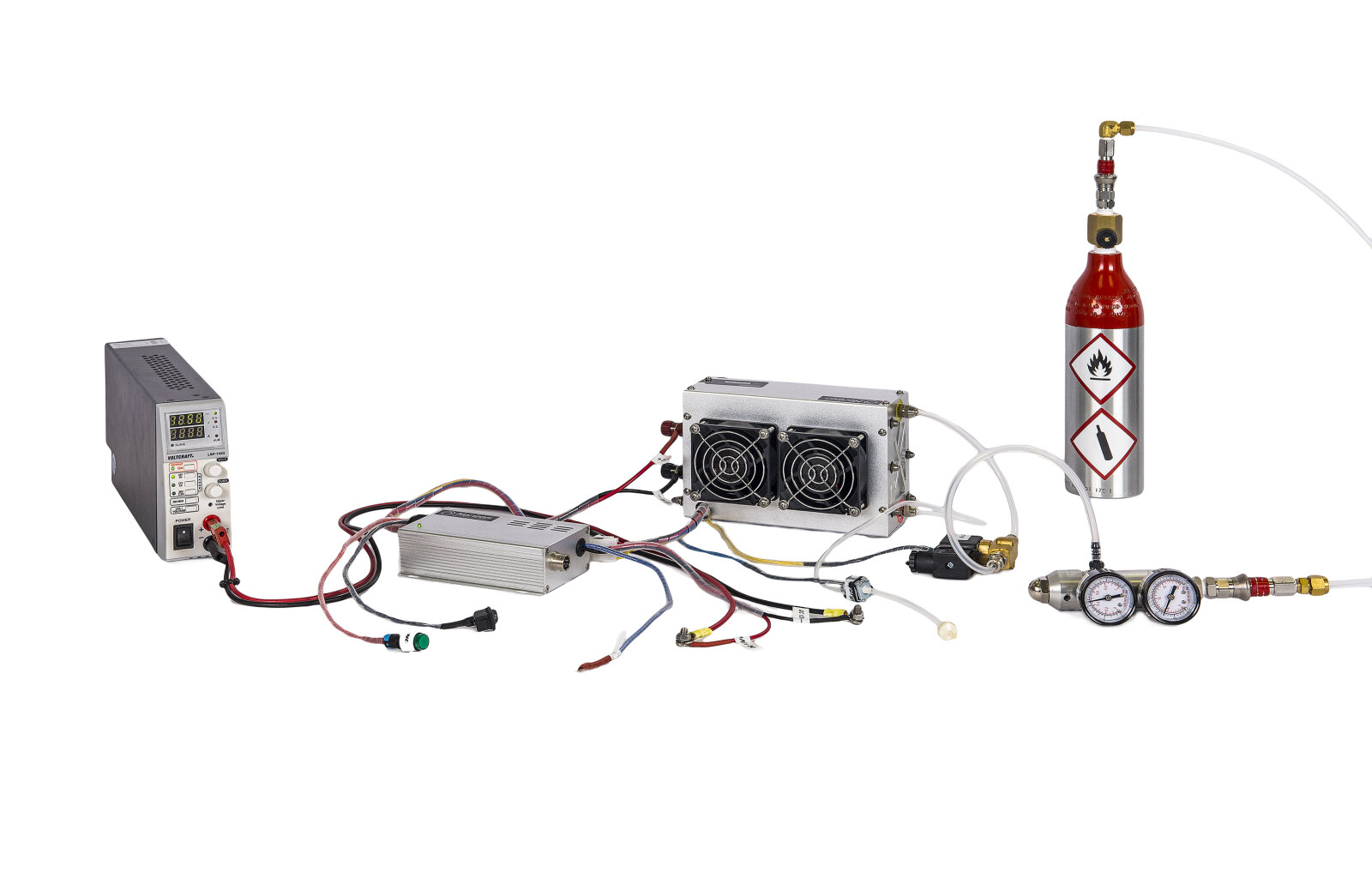

H-200 PEM Fuel Cell with MH

Fuel Cell Stack 200W Quick Product Facts

Number of cells  icon

Number of Cells

This fuel cell stack is composed of 40 fuel cells.

Pressure icon

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.

Temperature icon

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.

Humidity icon

Humidification

This fuel cell stack uses self-humidification.

weight icon

FC Stack Weight

The stack (including fan and casing) weighs 4.91lbs / 2,230g.

weight+2 icon

Controller Weight

The weight of the controller is 0.88lb / 400g.

efficiency icon

System Efficiency

At 24 volts the efficiency of the system is 40%.

external+power+supply icon

External Power Supply

Proper operation of the stack requires an external power supply of 13 volts at 5 amperes.



Downloads

Datasheet

pdf [880.45 kB]

User Manual

pdf [3.7 MB]
pdf [1.68 MB]
