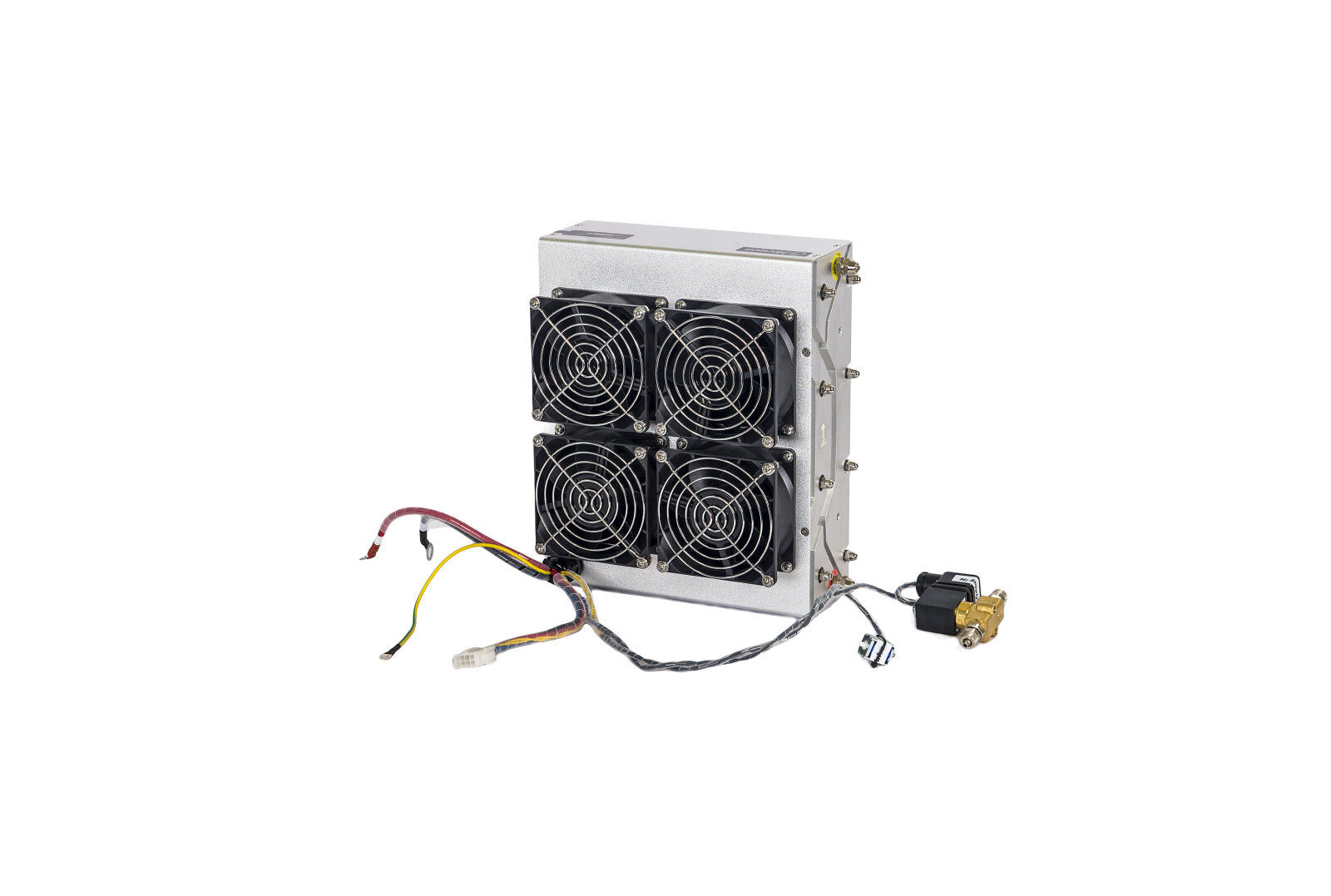

H-1000 PEM Fuel Cell - 1kW

University
The H-1000 PEM Fuel Cell (1kW) delivers high-performance hydrogen power for advanced system integration, real-world STEM projects, and demanding field applications. Producing 1,000W of clean, efficient energy, this system is well-suited for electric boats, larger mobility prototypes, off-grid platforms, and even defense testing and deployments.

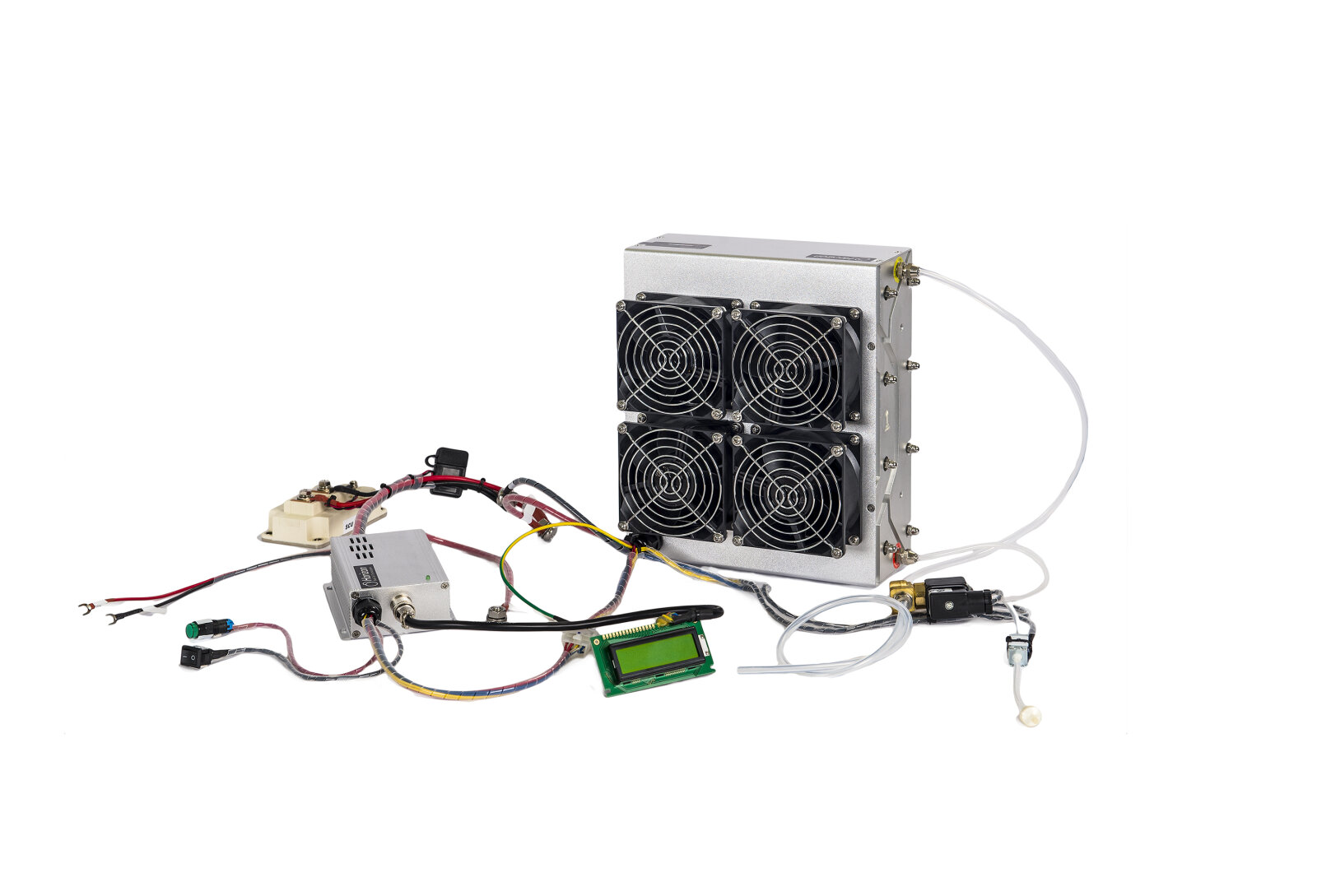

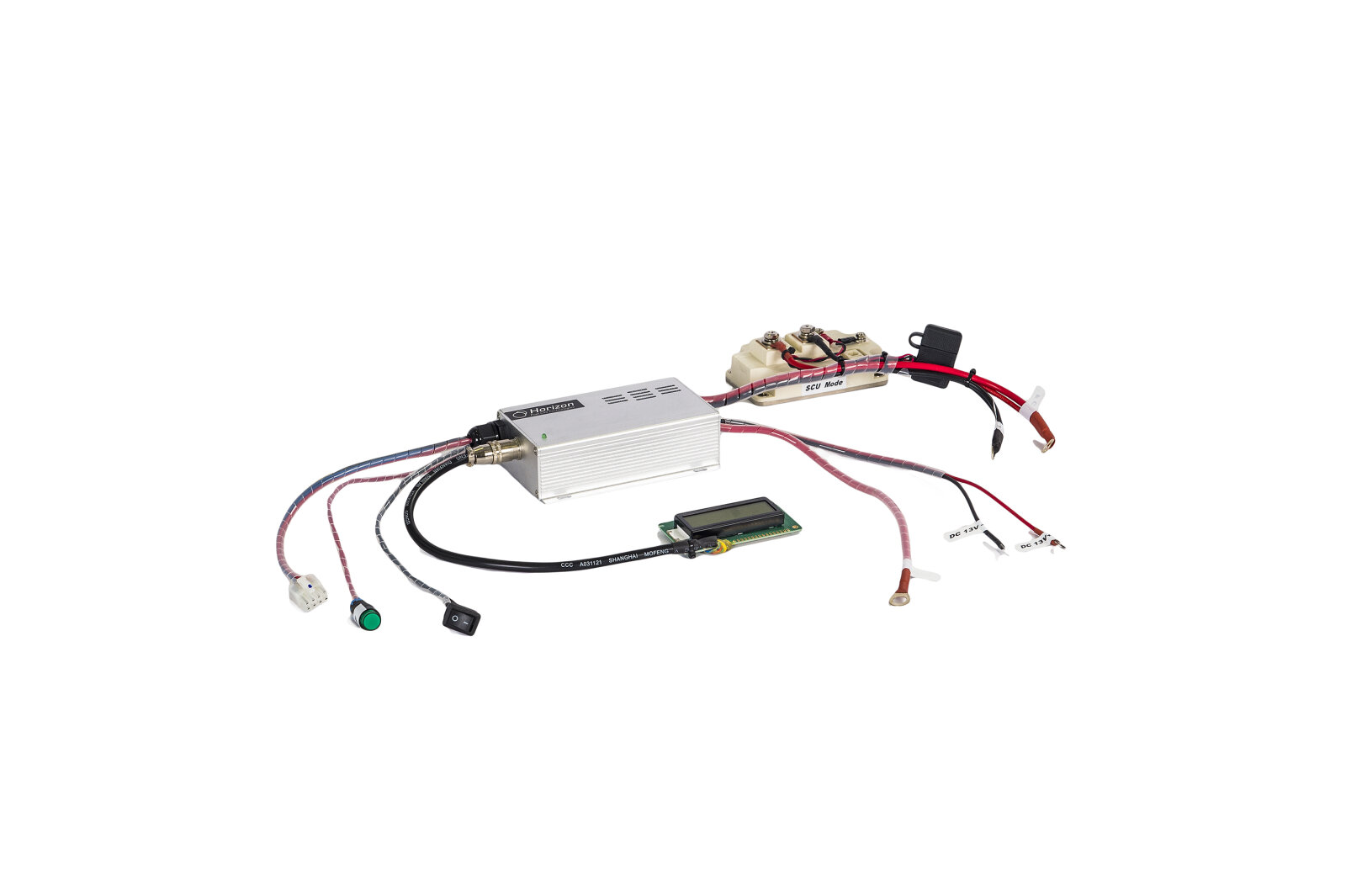

The system includes all essential components - blower, tubing, electronic valves, control box, and ON/OFF switches - making setup straightforward and efficient.
Horizon Educational also offers monitoring software and a compatible PC controller, allowing users to explore performance metrics in real time. For voltage flexibility, a DC/DC converter is available to support your custom output needs.

Why Choose the H-1000 Fuel Cell?

  • Complete Plug-and-Play Package - Includes blower, control box, valves, tubing, and ON/OFF switches for fast setup
  • Real-Time Monitoring Capability - Compatible with Horizon's software and PC controller for in-depth fuel cell analysis
  • Flexible Power Output - Optional DC/DC converter available for customized voltage requirements
  • Built for Advanced Innovation - Ideal for STEM education, research labs, clean energy prototyping, and defense R&D
  • Rapid Delivery & Global Support - Off-the-shelf availability and first-class customer support
FCS-C1000 H-1000 PEM Fuel Cell 1kW

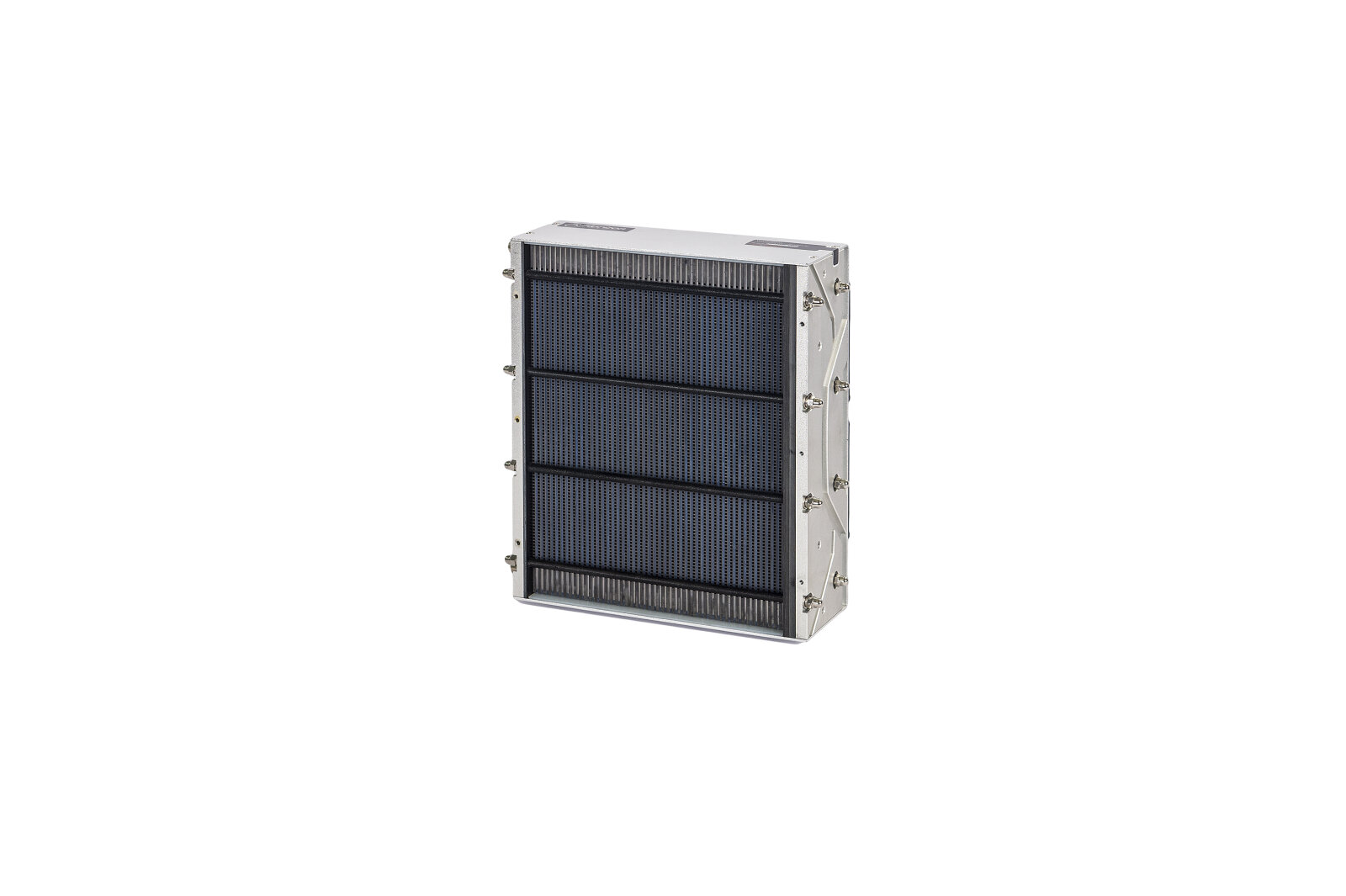

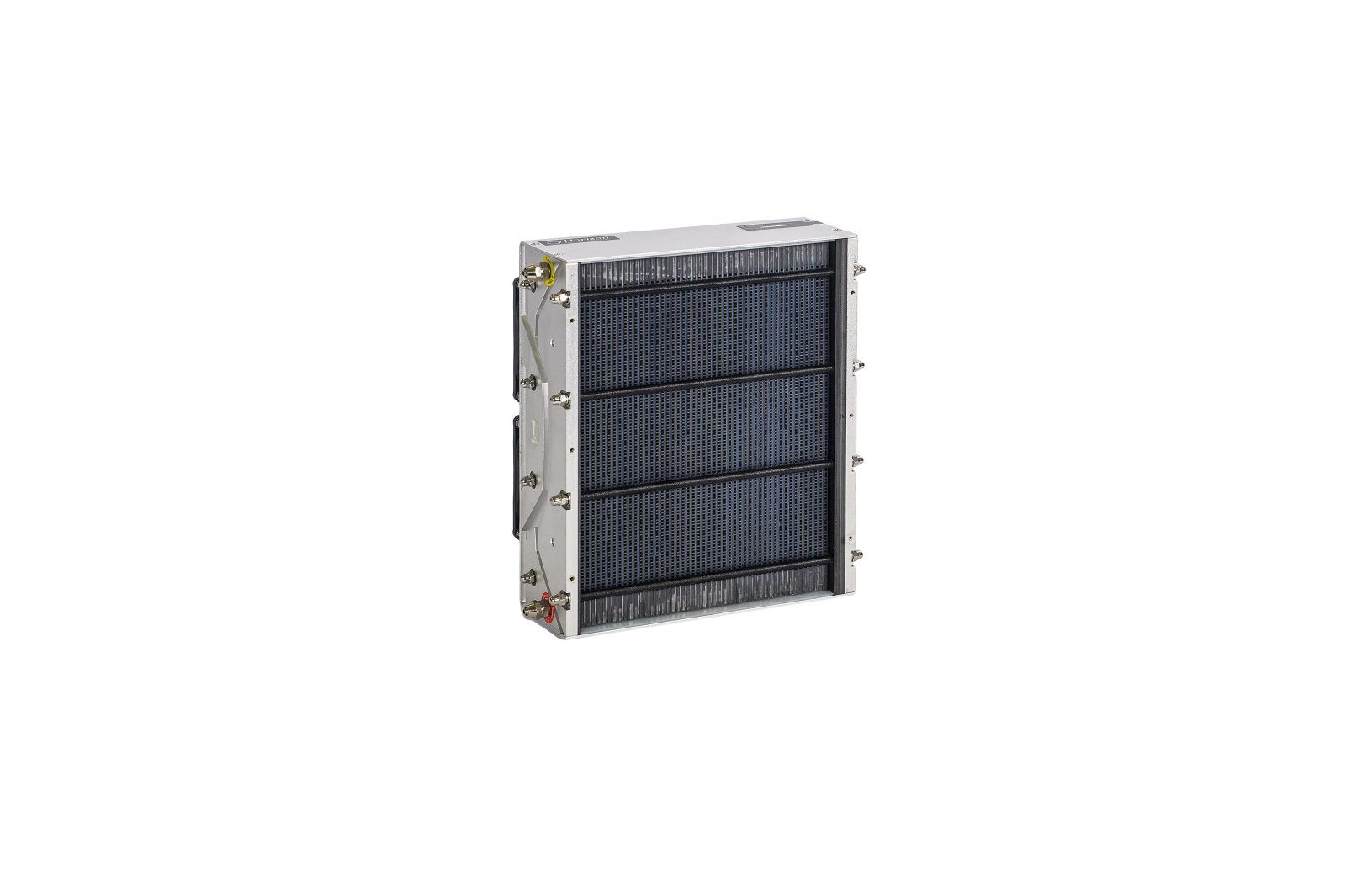

Fuel Cell Stack 1kW

Hear from Our Customers:

“Horizon stacks are very flexible for research and education. It is very didactic. The students compare the properties of the fuel cell stack with increasing power and also gain knowledge about the construction of the fuel cell stack—not only for power but also for the electrical needs of the system, cooling, etc." - Professor Magdalena Dudek, AGH University of Science and Technology, Faculty of Energy and Fuels in Kraków, Poland

1kW Fuel Cell and Hydrogen

Safety Requirements

Do not connect or disconnect power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is disassembled or otherwise altered. Hydrogen is a colorless, odorless, and flammable substance.  Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any leaking hydrogen within the system or from the hydrogen storage canister. Please refer to the H-1000 User Manual to see a complete list of the safety requirements for the product.

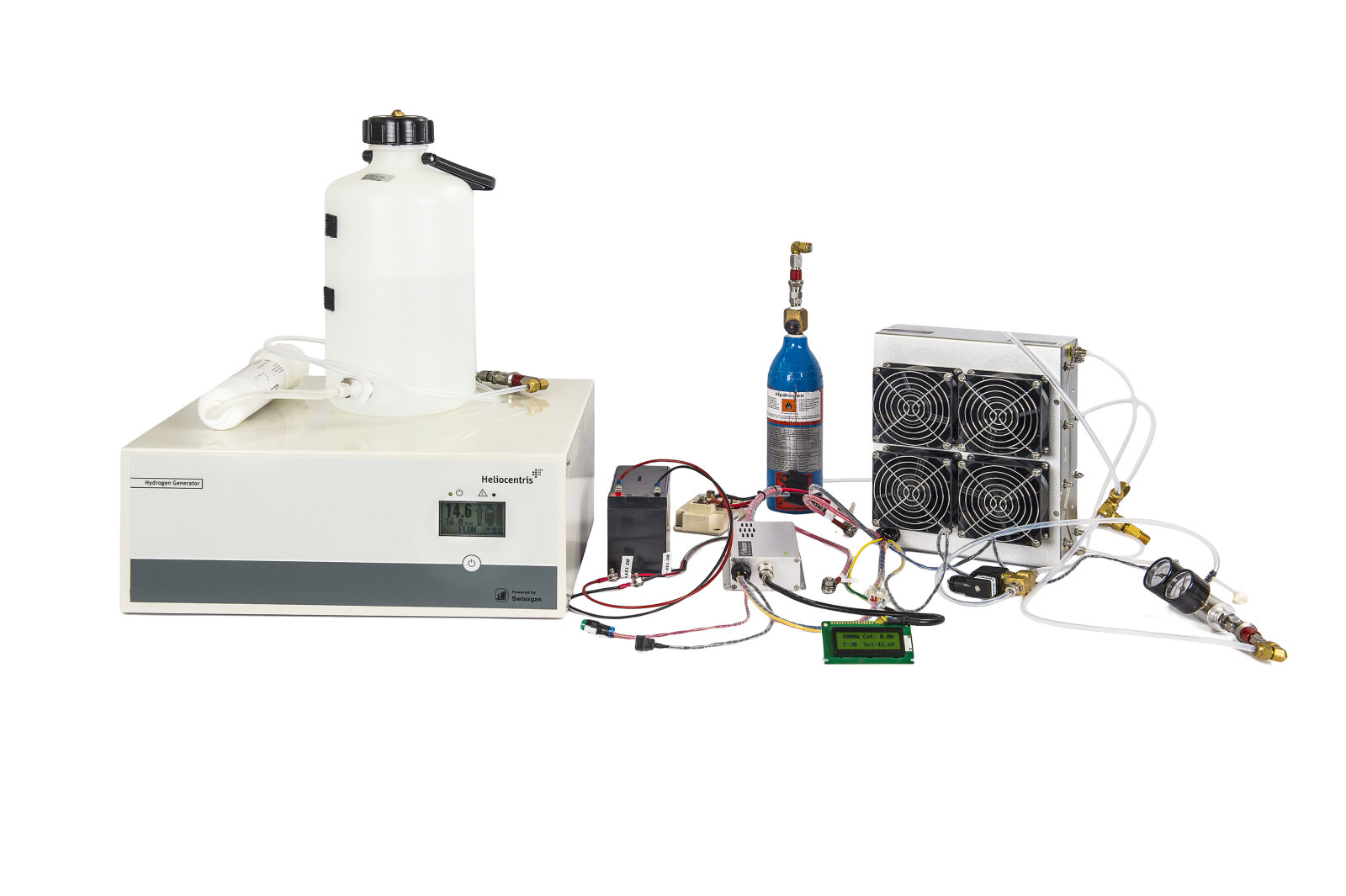

H-1000 PEM Fuel Cell with Electrolyzer and MH

Fuel Cell Stack 1000W Quick Product Facts

Number of cells  icon

Number of Cells

This fuel cell stack is composed of 48 fuel cells.

Pressure icon

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.

Temperature icon

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.

Humidity icon

Humidification

This fuel cell stack uses self-humidification.

weight icon

FC Stack Weight

The stack (including fan and casing) weighs 12.8lbs / 5.8kg.

weight+2 icon

Controller Weight

The weight of the controller is 1.3lbs / 0.6kg.

efficiency icon

System Efficiency

At 28.8 volts the efficiency of the system is 40%.

external+power+supply icon

External Power Supply

Proper operation of the stack requires an external power supply of 13 volts at 8 amperes.

Downloads

Datasheet

pdf [880.45 kB]

User Manual

pdf [3.7 MB]
pdf [2.51 MB]
