H-2000 PEM Fuel Cell - 2kW

University

When looking to procure fuel cell stacks for new product development, testing or system integration, you are likely to find the best possible value at Horizon Educational. We offer the widest range of standard "off-the-shelf" PEM fuel cell systems today from 100W to 5kW (deliverable within 1 to 4 weeks), as well as customized fuel cell system configurations up to 30kW. Our standard systems are simple, efficient, and feature some of the highest power densities available in the world opening new possibilities for integration and commercialization.

Our standard systems are modular, simple, efficient, and feature some of the highest power densities available in the world opening new possibilities for integration & commercialization. Make contact with our team to explore accessories, new D/DC power conversion devices, and other system components you may need.

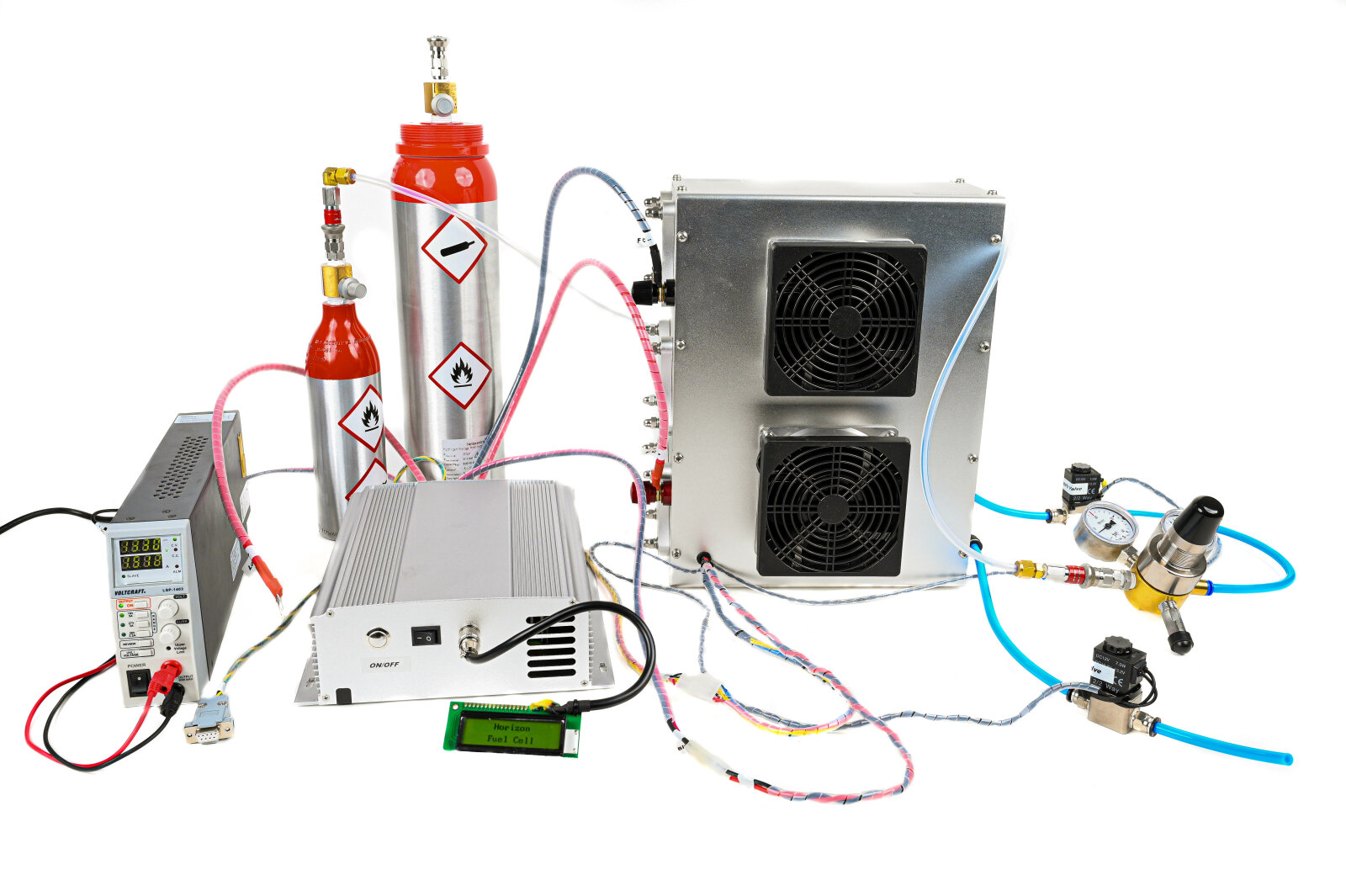

  • Connections/Tubing
  • Electronic valves

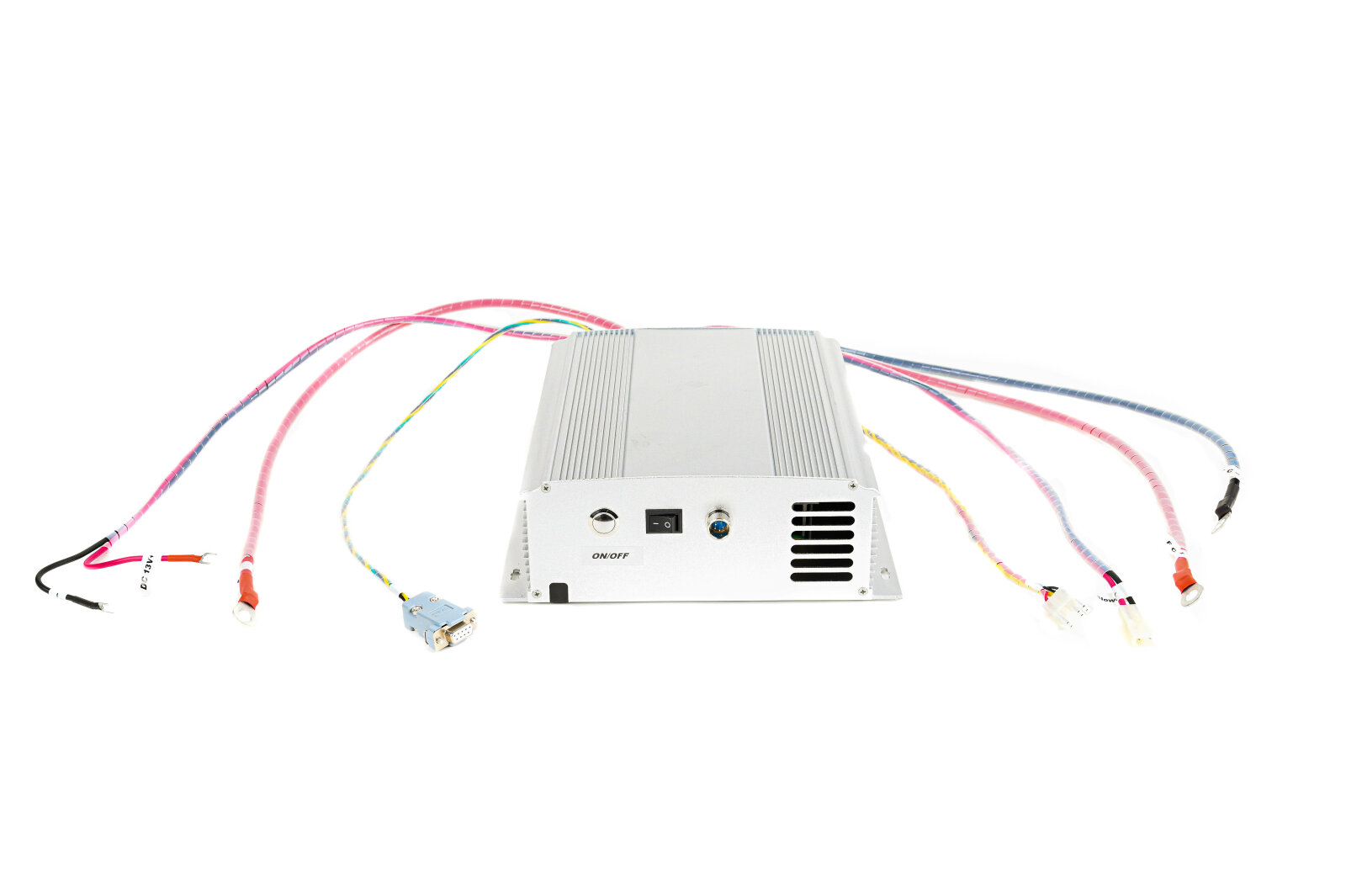

  • Electronic control box

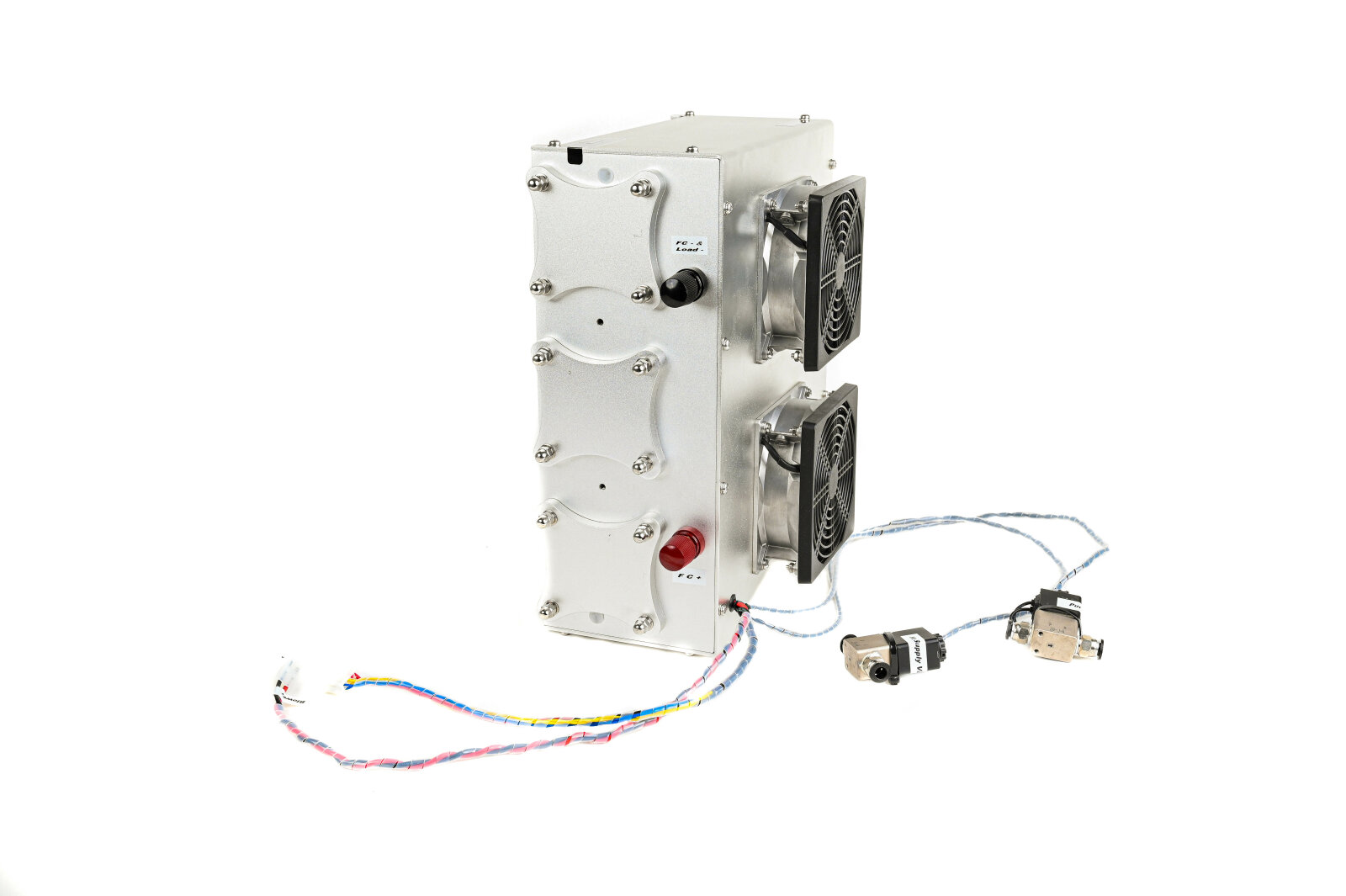

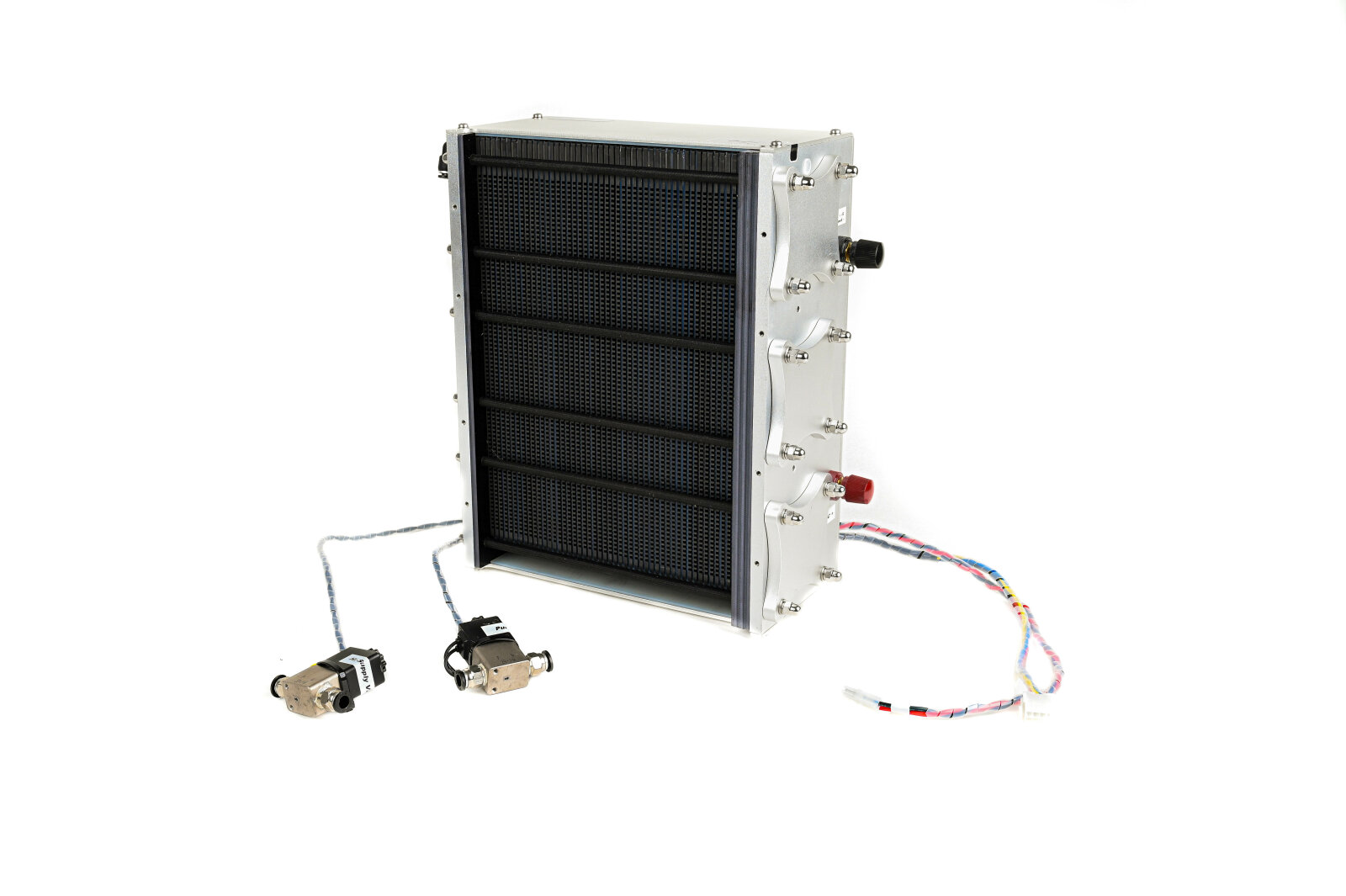

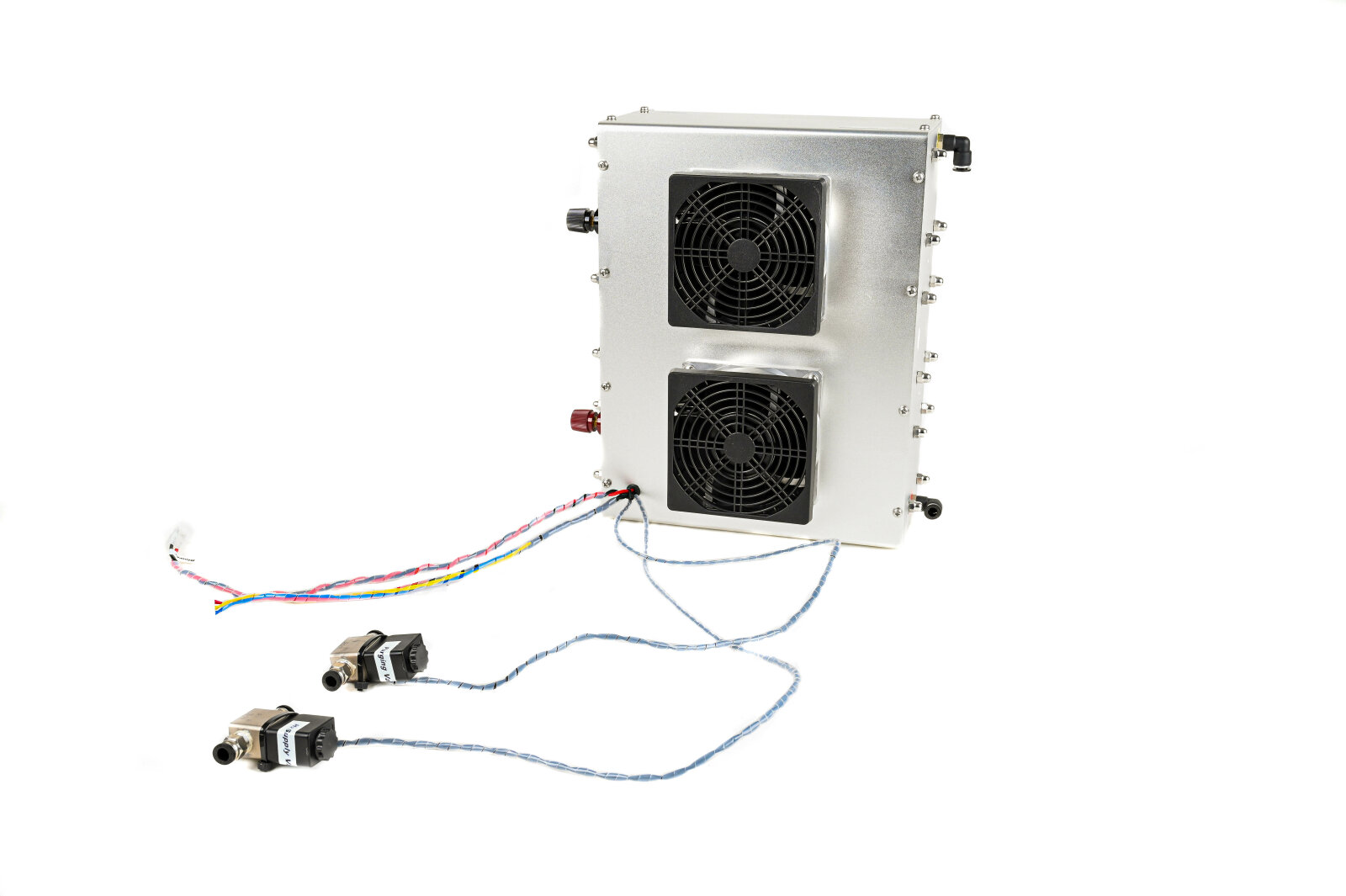

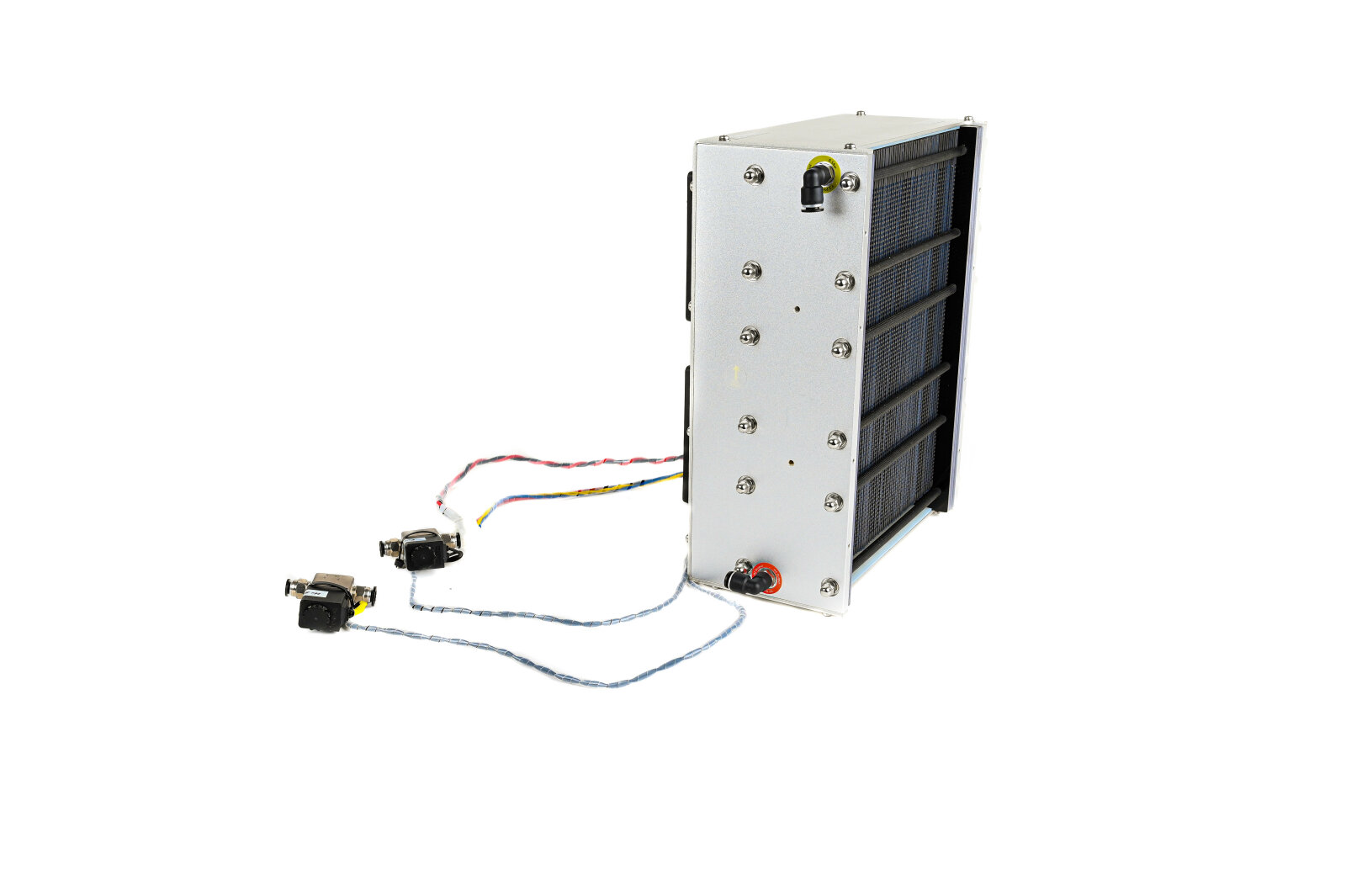

  • 2000 W stack with blower
  • Fuel Cell ON/OFF switch
  • SCU ON/OFF switch

Make contact with our team to explore accessories, new D/DC power conversion devices, H2 Sensor, Ultracapacitor and other system components you may need.

FCS-C2000 H-2000 PEM Fuel Cell 2kW

Fuel Cell Stack 2kW

Additional information

As with all higher wattage stacks, please click here to complete a quote request form in order for us to reach out to you with product availability, shipping times, and other relevant information.  While we do try to keep a few on hand at all times, we do occasionally sell out of this fuel cell stack.  We can also help with determining what additional items may be needed to blend this fuel cell stack into your project.

Fuel Cell and Hydrogen

Safety Requirements

Do not connect or disconnect power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is disassembled or otherwise altered. Hydrogen is a colorless, odorless, and flammable substance.  Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any leaking hydrogen within the system or from the hydrogen storage canister. Please refer to the H-2000 User Manual to see a complete list of the safety requirements for the product.

Fuel Cell Stack 2000W Quick Product Facts

Number of cells  icon

Number of Cells

This fuel cell stack is composed of 48 fuel cells.

Pressure icon

Hydrogen Pressure

Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.

Temperature icon

Ambient Temperature

The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.

Humidity icon

Humidification

This fuel cell stack uses self-humidification.

weight icon

FC Stack Weight

The stack (including fan and casing) weighs 31lbs / 14kg.

weight+2 icon

Controller Weight

The weight of the controller is 5.5lbs / 2,500g.

efficiency icon

System Efficiency

At 28.8 volts the efficiency of the system is 40%.

external+power+supply icon

External Power Supply

Proper operation of the stack requires an external power supply of 13 volts at 10 amperes.

Downloads

Datasheet

pdf [880.45 kB]

User Manual

pdf [1.32 MB]
pdf [3.7 MB]
