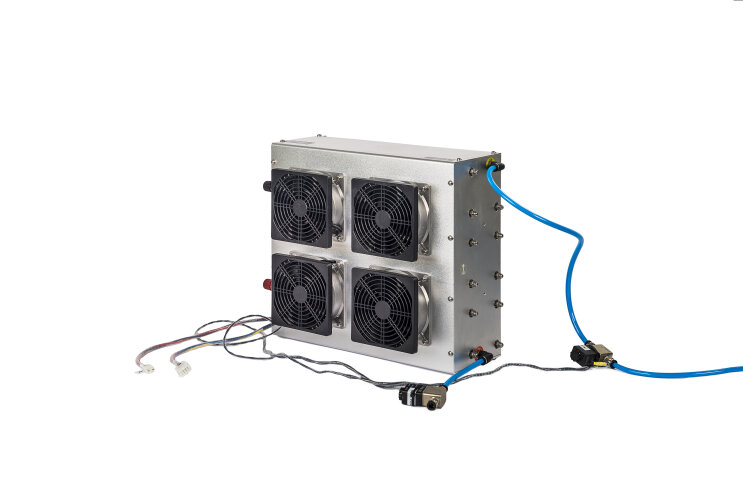

H-3000 PEM Fuel Cell - 3kW
When looking to procure fuel cell stacks for new product development, testing or system integration, you are likely to find the best possible value at Horizon Educational. We offer the widest range of standard "off-the-shelf" PEM fuel cell systems today from 100W to 5kW (deliverable within 1 to 4 weeks), as well as customized fuel cell system configurations up to 30kW. Our standard systems are simple, efficient, and feature some of the highest power densities available in the world opening new possibilities for integration and commercialization.
Our standard systems are modular, simple, efficient, and feature some of the highest power densities available in the world opening new possibilities for integration & commercialization. Make contact with our team to explore accessories, new D/DC power conversion devices, and other system components you may need.
- Electronic valves
- Electronic control box
- 3000 W stack with blower
- Fuel Cell ON/OFF switch
- SCU ON/OFF switch
Make contact with our team to explore accessories, new D/DC power conversion devices, H2 Sensor, Ultracapacitor and other system components you may need.
Fuel Cell Stack 3kW
Please fill out a quote request form here so that we can provide you with all the information you need about this fuel cell stack and fuel cell stack accessories. If you would like to buy this hydrogen fuel cell stack, then we can help with that as well. We typically have one or two of these in-stock, but availability does vary.
3kW Fuel Cell and Hydrogen
Do not plug or unplug power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is adjusted or otherwise changed. Hydrogen is a colorless, odorless, and flammable substance. Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with abundant ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any hydrogen flowing within the system or out of the storage canister in a manner that falls outside of safety parameters. Please refer to the H-3000 User Manual to see a complete list of the safety requirements for the product.
Fuel Cell Stack 3000W Quick Product Facts
Nuber of Cells
This fuel cell stack is composed of 72 fuel cells.
Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.
The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.
This fuel cell stack uses self-humidification.
FC Stack Weight
The stack (including fan and casing) weighs 33lbs / 15kg.
The weight of the controller is 5.5lbs / 2,500g.
At 43.2 volts the efficiency of the system is 40%.
External Power Supply
Proper operation of the stack requires an external power supply of 13 volts at 20 amperes.
